Standard Hose Insert × Standpipe Metric, Elbow 90°

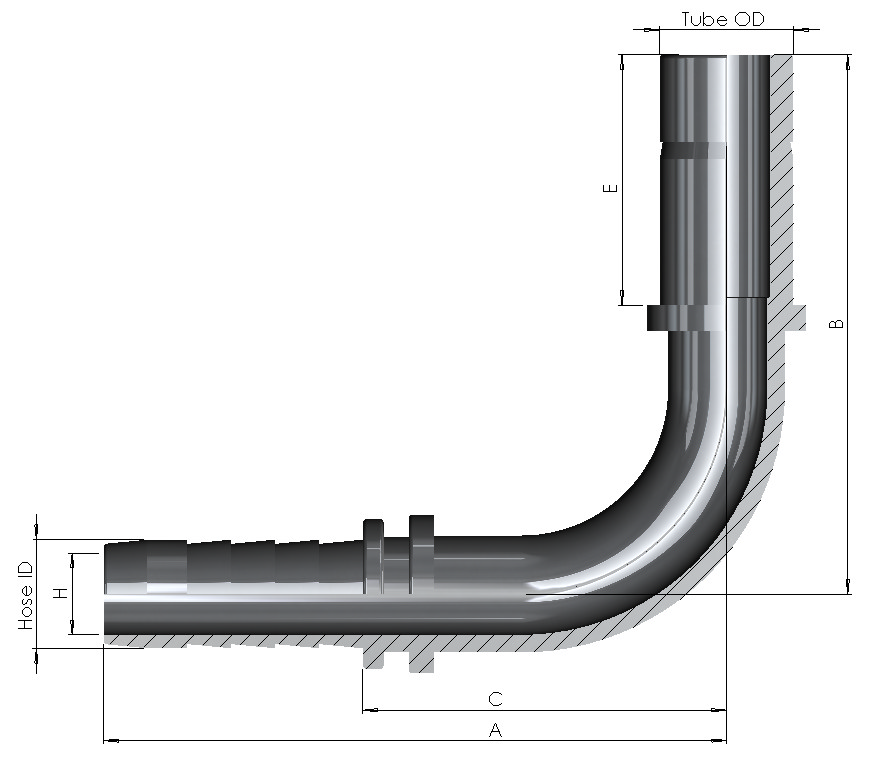

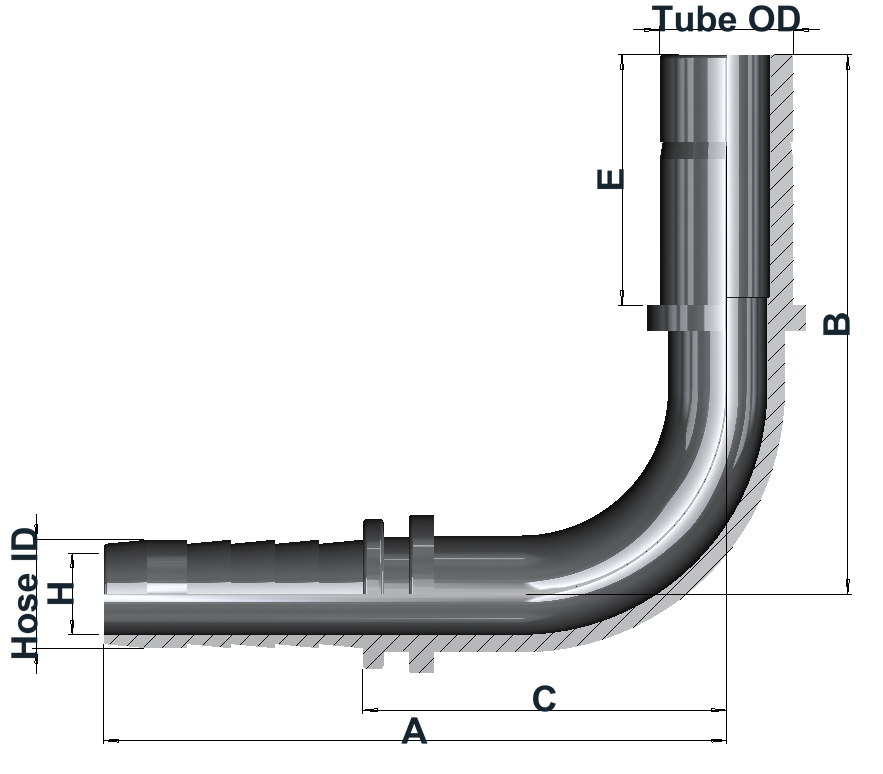

Group 1490 Standpipe Metric 90° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Tube OD	A	B	C	E	H	Weight (kg)
14900406316	1/4"	8	6 mm	57	43	30	23	Ø4	0.023
14900408316	1/4"	8	8 mm	57	43	30	23	Ø4.5	0.024
14900410316	1/4"	8	10 mm	57	45	30	25	Ø4.5	0.031
14900610316	3/8"	10	10 mm	64	49	34	25	Ø7	0.038
14900612316	3/8"	10	12 mm	64	49	34	25	Ø7	0.074
14900614316	3/8"	10	14 mm	64	54	34	30	Ø7	0.090
14900615316	3/8"	10	15 mm	64	51	34	27	Ø7	0.083
14900812316	1/2"	15	12 mm	73	57	42	25	Ø8	0.081
14900815316	1/2"	15	15 mm	73	59	42	27	Ø10	0.083
14900816316	1/2"	15	16 mm	73	62	42	35	Ø10	0.086
14900818316	1/2"	15	18 mm	73	60	42	27	Ø10	0.085
14900820316	1/2"	15	20 mm	73	70	42	35	Ø10	0.157
14901018316	5/8"	16	18 mm	88	62	54	27	Ø12	0.148
14901020316	5/8"	16	20 mm	88	70	54	35	Ø12	0.173
14901220316	3/4"	20	20 mm	101	82	63	35	Ø15	0.200
14901222316	3/4"	20	22 mm	101	76	63	29	Ø15	0.186
14901225316	3/4"	20	25 mm	101	87	63	40	Ø15	0.265
14901625316	1"	25	25 mm	124	102	76	40	Ø19	0.480
14901628316	1"	25	28 mm	124	92	76	30	Ø19	0.410
14901630316	1"	25	30 mm	124	105	76	43	Ø19	0.500
14902035316	1 1/4"	32	35 mm	155	108	100	35	Ø24	0.800
14902038316	1 1/4"	32	38 mm	155	118	100	45	Ø24	0.840
14902442316	1 1/2"	40	42 mm	175	129	117	40	Ø30	1.230

Article number structure

1490 | 04 | 06 | 316

Series | Hose size code | Tube OD code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Tube connection	General product information
Type Standard Hose Insert Hose size 1/4"–1 1/2" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 1490 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type Metric standpipe Configuration 90° Bend Tube outside diameter See Tube OD column Units Millimetres	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

Metric standpipe end

Metric standpipe with outside diameter in millimetres as specified in the Tube OD column.

IM-1490 · HTML DRAFT 01
Layout example based on the group 1490 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
