Standard Hose Insert × Standpipe Imperial, Elbow 90°

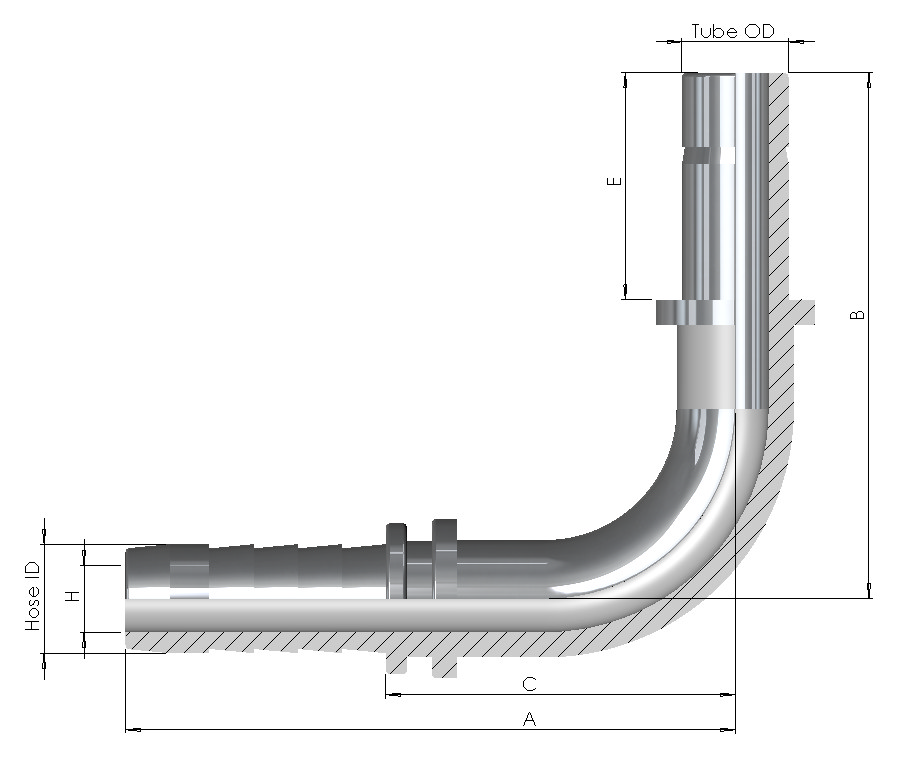

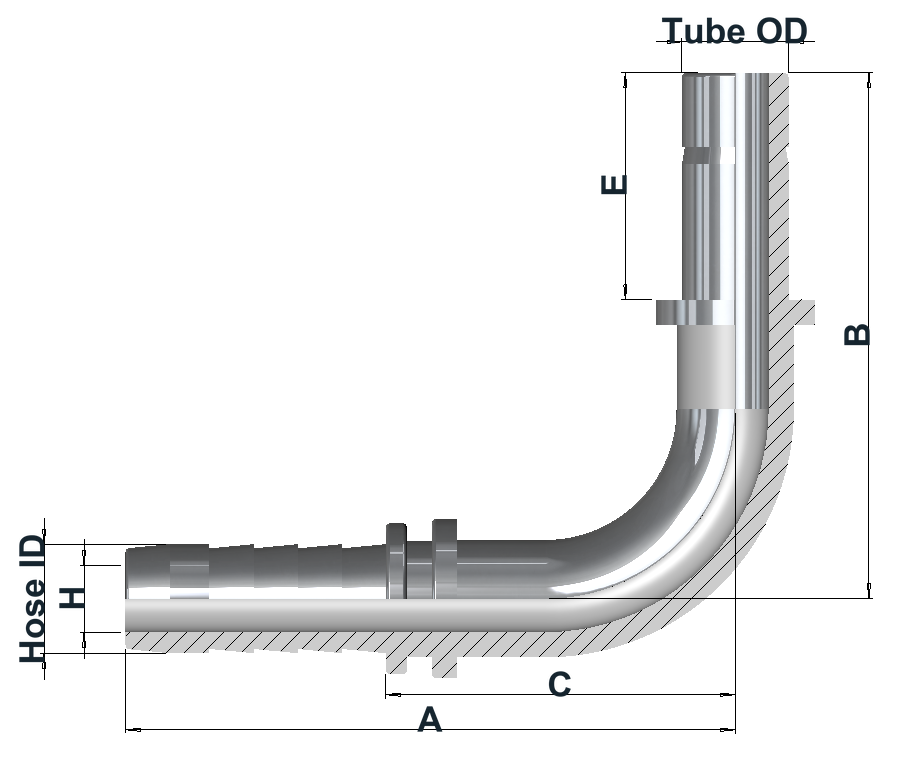

Group 1590 Standpipe Imperial 90° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Tube OD	A	B	C	E	H	Weight (kg)
15900404316	1/4"	8	1/4"	53	43	30	23	Ø4	0.023
15900606316	3/8"	10	3/8"	64	49	34	25	Ø7	0.039
15900808316	1/2"	15	1/2"	73	57	42	25	Ø8	0.076
15901212316	3/4"	20	3/4"	101	82	63	35	Ø15	0.192
15901616316	1"	25	1"	124	102	76	40	Ø19	0.420

Article number structure

1590 | 04 | 04 | 316

Series | Hose size code | Tube OD code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Tube connection	General product information
Type Standard Hose Insert Hose size 1/4"–1" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 1590 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type Imperial standpipe Configuration 90° Bend Tube outside diameter See Tube OD column Units Inches	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

Imperial standpipe end

Imperial standpipe with outside diameter in inches as specified in the Tube OD column.

IM-1590 · HTML DRAFT 01
Layout example based on the group 1590 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
