Standard Hose Insert × SAE 6000 Flange, Elbow 45°

ISO 6162-2SAE J518

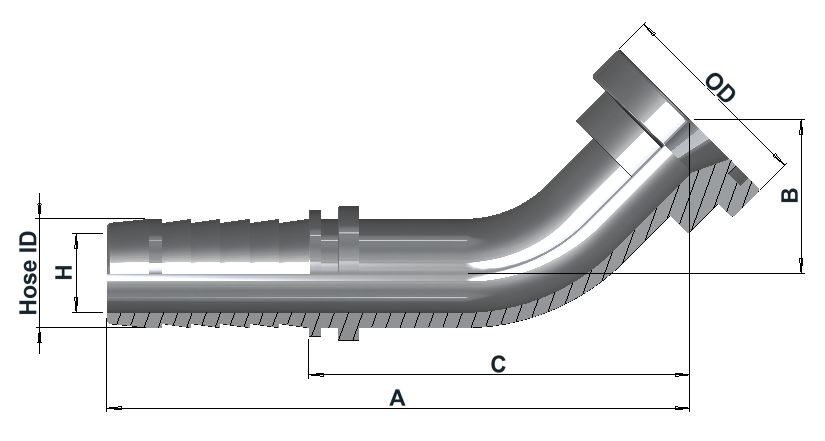

Group 2845 SAE 6000 Flange 45° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	SAE 6000	A	B	C	H	OD	Weight (kg)
28451212316	3/4"	20	3/4"	114	33	76	Ø15	Ø41.3	0.242
28451616316	1"	25	1"	140	37	92	Ø19	Ø47.6	0.427
28452020316	1 1/4"	32	1 1/4"	172	48	117	Ø24	Ø54	0.711
28452424316	1 1/2"	40	1 1/2"	193	55	135	Ø30	Ø63.5	1.143
28453232316	2"	50	2"	245	70	183	Ø40	Ø79.4	2.737

Article number structure

2845 | 12 | 12 | 316

Series | Hose size code | Flange size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Flange connection	General product information
Type Standard Hose Insert Hose size 3/4"–2" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 2845 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type SAE 6000 Flange Configuration 45° Bend · Code 62 Connection standard ISO 6162-2 / SAE J518 Sealing O-ring	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

SAE flange end

Code 62 flange connection to ISO 6162-2 / SAE J518, sealed by an O-ring between the flange head and mating port face. Use matching flange clamps, fasteners and an O-ring suitable for the fluid and operating temperature. Assemble and tighten to the applicable specifications. The SAE 6000 designation identifies the flange series; the allowable assembly working pressure remains subject to the component ratings and service conditions.
