Standard Hose Insert × SAE 3000 Flange, Elbow 45°

ISO 6162-1SAE J518

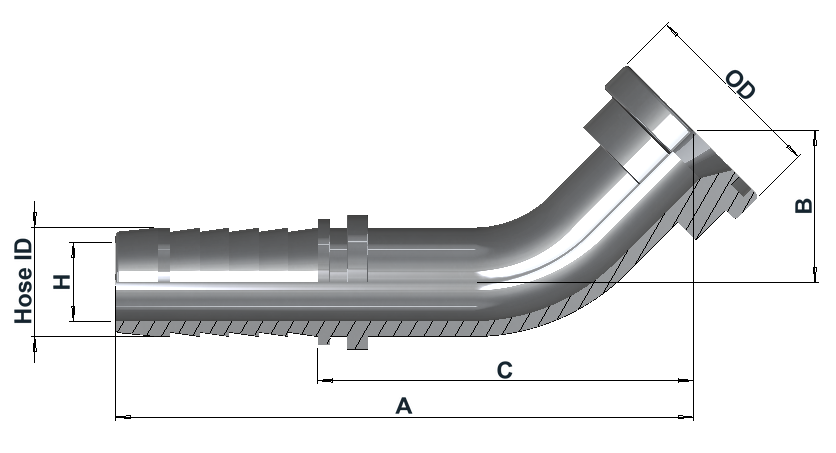

Group 2745 SAE 3000 Flange 45° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	SAE 3000	A	B	C	H	OD	Weight (kg)
27451212316	3/4"	20	3/4"	114	33	76	Ø15	Ø38.1	0.210
27451616316	1"	25	1"	140	37	92	Ø19	Ø44.5	0.402
27452020316	1 1/4"	32	1 1/4"	169	45	114	Ø24	Ø50.8	0.655
27452424316	1 1/2"	40	1 1/2"	191	51	131	Ø30	Ø60.3	1.030
27453232316	2"	50	2"	243	68	181	Ø40	Ø71.4	2.479

Article number structure

2745 | 12 | 12 | 316

Series | Hose size code | Flange size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Flange connection	General product information
Type Standard Hose Insert Hose size 3/4"–2" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 2745 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type SAE 3000 Flange Configuration 45° Bend · Code 61 Connection standard ISO 6162-1 / SAE J518 Sealing O-ring	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

SAE flange end

Code 61 flange connection to ISO 6162-1 / SAE J518, sealed by an O-ring between the flange head and mating port face. Use matching flange clamps, fasteners and an O-ring suitable for the fluid and operating temperature. Assemble and tighten to the applicable specifications. The SAE 3000 designation identifies the flange series; the allowable assembly working pressure remains subject to the component ratings and service conditions.

IM-2745 · HTML DRAFT 01
Layout example based on the group 2745 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
