Standard Hose Insert × Metric 24° Male

ISO 8434-1

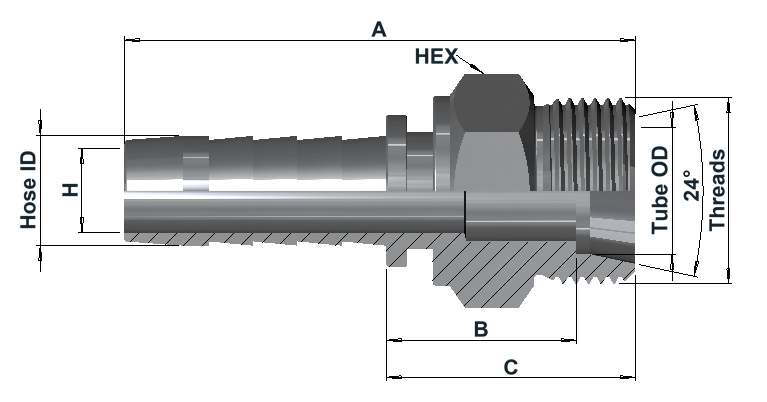

Group 2300 dimensional drawing — Straight — Light Series

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Tube size	Threads	A	B	C	H	Hex	Weight (kg)
23000408316	1/4"	8	8L	M14×1.5	52	18	25	Ø4.5	17	0.021
23000410316	1/4"	8	10L	M16×1.5	53	19	26	Ø4.5	17	0.029
23000612316	3/8"	10	12L	M18×1.5	57	20	27	Ø7	19	0.041
23000815316	1/2"	15	15L	M22×1.5	61	23	30	Ø10	24	0.080
23000818316	1/2"	15	18L	M26×1.5	61	23.5	31	Ø10	27	0.090
23001018316	5/8"	16	18L	M26×1.5	65	23.5	31	Ø12	27	0.115
23001222316	3/4"	20	22L	M30×2.0	73	27.5	35	Ø15	32	0.157
23001628316	1"	25	28L	M36×2.0	85	29.5	37	Ø20	41	0.255

Article number structure

2300 | 04 | 08 | 316

Series | Hose size code | Metric tube size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Standard Hose Insert Hose size 1/4"–1" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 2300 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type Metric 24° Male Configuration Straight · Light Series Connection standard ISO 8434-1 Thread standard ISO 724	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

Metric 24° male end

24° cone end to ISO 8434-1 with ISO metric thread to ISO 724, tolerance class 6g to ISO 965-1.

IM-2300 · HTML DRAFT 01
Layout example based on the group 2300 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
