Standard Hose Insert × Metric 24° Male

ISO 8434-1

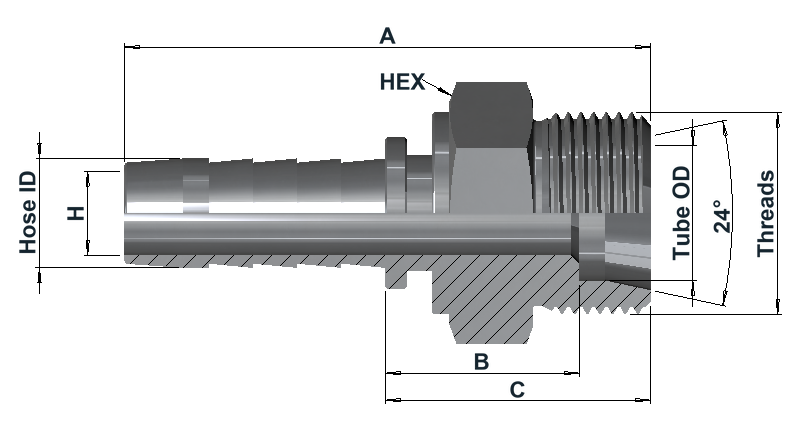

Group 2400 dimensional drawing — Straight — Strong Series

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Tube size	Threads	A	B	C	H	Hex	Weight (kg)
24000408316	1/4"	8	8S	M16×1.5	54	20	27	Ø4.5	17	0.034
24000410316	1/4"	8	10S	M18×1.5	54	19.5	27	Ø4.5	19	0.042
24000612316	3/8"	10	12S	M20×1.5	58	21	28	Ø7	22	0.056
24000614316	3/8"	10	14S	M22×1.5	60	22	30	Ø7	24	0.071
24000816316	1/2"	15	16S	M24×1.5	63	23.5	32	Ø10	27	0.094
24001020316	5/8"	16	20S	M30×2.0	69	24.5	35	Ø12	32	0.147
24001220316	3/4"	20	20S	M30×2.0	75	26.5	37	Ø15	32	0.159
24001225316	3/4"	20	25S	M36×2.0	77	27	39	Ø15	41	0.230
24001625316	1"	25	25S	M36×2.0	89	29	41	Ø20	41	0.272
24001630316	1"	25	30S	M42×2.0	91	29.5	43	Ø20	46	0.365

Article number structure

2400 | 04 | 08 | 316

Series | Hose size code | Metric tube size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Standard Hose Insert Hose size 1/4"–1" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 2400 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type Metric 24° Male Configuration Straight · Strong Series Connection standard ISO 8434-1 Thread standard ISO 724	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

Metric 24° male end

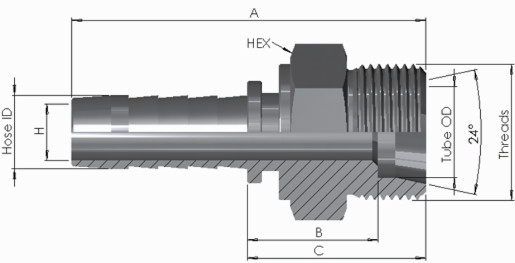

24° cone end to ISO 8434-1 with ISO metric thread to ISO 724, tolerance class 6g to ISO 965-1.
