Standard Hose Insert × JIC 37° Female Swivel, Elbow 45°

ISO 8434-2

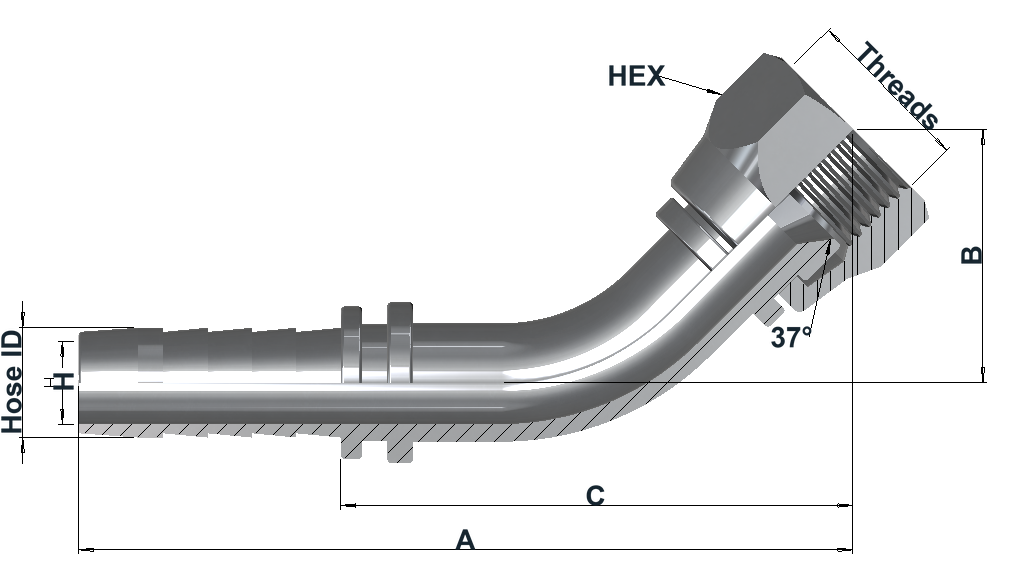

Group 0645 JIC 37° Female Swivel, Elbow 45° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	Dash	A	B	C	H	Hex	Weight (kg)
06450407316	1/4"	8	7/16"-20 UN	-4	60	16	37	Ø4.5	17	0.038
06450408316	1/4"	8	1/2"-20 UN	-5	60	16	37	Ø4.5	17	0.032
06450409316	1/4"	8	9/16"-18 UN	-6	60	16	37	Ø4.5	19	0.042
06450609316	3/8"	10	9/16"-18 UN	-6	72	20	42	Ø7	19	0.050
06450612316	3/8"	10	3/4"-16 UN	-8	72	20	42	Ø7	24	0.070
06450812316	1/2"	15	3/4"-16 UN	-8	85	23	54	Ø10	24	0.092
06450814316	1/2"	15	7/8"-14 UN	-10	85	23	54	Ø10	27	0.108
06451014316	5/8"	16	7/8"-14 UN	-10	97	26	63	Ø12	27	0.150
06451217316	3/4"	20	1 1/16"-12 UN	-12	113	29	75	Ø15	32	0.233
06451621316	1"	25	1 5/16"-12 UN	-16	139	34	91	Ø19	41	0.411
06452026316	1 1/4"	32	1 5/8"-12 UN	-20	164	39	109	Ø24	50	0.774
06452430316	1 1/2"	40	1 7/8"-12 UN	-24	196	51	138	Ø30	55	1.148
06453240316	2"	50	2 1/2"-12 UN	-32	243	68	181	Ø40	75	3.150

Article number structure

0645 | 04 | 07 | 316

Series | Hose size code | JIC thread size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Standard Hose Insert Hose size 1/4"–2" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 0645 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type JIC 37\u00b0 Female Swivel Configuration 45° Bend · 37° flare Connection standard ISO 8434-2 Thread standard ASME B1.1	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

JIC 37\u00b0 Female Swivel end

37° flare swivel connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.

IM-0645 · HTML DRAFT 01
Layout example based on the group 0645 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
