Standard Hose Insert × JIC 37° Female Swivel

ISO 8434-2

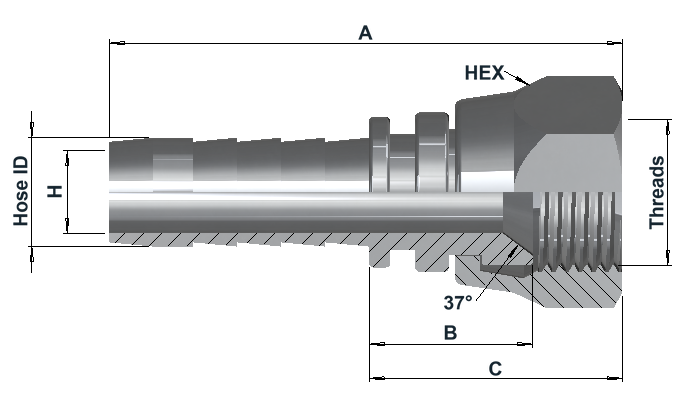

Group 0600 JIC 37° Female Swivel dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	Dash	A	B	C	H	Hex	Weight (kg)
06000407316	1/4"	8	7/16"-20 UN	-4	50	16.5	23	Ø4.5	17	0.025
06000408316	1/4"	8	1/2"-20 UN	-5	50	16.5	23	Ø4.5	17	0.024
06000409316	1/4"	8	9/16"-18 UN	-6	52	16.5	24	Ø4.5	19	0.034
06000609316	3/8"	10	9/16"-18 UN	-6	55	16.5	24	Ø7	19	0.039
06000612316	3/8"	10	3/4"-16 UN	-8	59	19	29	Ø7	24	0.055
06000812316	1/2"	15	3/4"-16 UN	-8	61	19	29	Ø10	24	0.062
06000814316	1/2"	15	7/8"-14 UN	-10	64	21	33	Ø10	27	0.080
06000817316	1/2"	15	1 1/16"-12 UN	-12	68	23	37	Ø10	32	0.109
06001014316	5/8"	16	7/8"-14 UN	-10	67	21	33	Ø12	27	0.090
06001017316	5/8"	16	1 1/16"-12 UN	-12	72	23	37	Ø12	32	0.106
06001217316	3/4"	20	1 1/16"-12 UN	-12	77	25	39	Ø15	32	0.136
06001221316	3/4"	20	1 5/16"-12 UN	-16	78	25	40	Ø15	41	0.216
06001621316	1"	25	1 5/16"-12 UN	-16	89	26	41	Ø20	41	0.259
06001626316	1"	25	1 5/8"-12 UN	-20	94	29	46	Ø20	50	0.423
06002026316	1 1/4"	32	1 5/8"-12 UN	-20	101	29	46	Ø24.5	50	0.472
06002430316	1 1/2"	40	1 7/8"-12 UN	-24	106	31	49	Ø32	55	0.560
06003240316	2"	50	2 1/2"-12 UN	-32	120	34	57	Ø45	75	0.925

Article number structure

0600 | 04 | 07 | 316

Series | Hose size code | JIC thread size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Standard Hose Insert Hose size 1/4"–2" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 0600 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type JIC 37\u00b0 Female Swivel Configuration Straight · 37° flare Connection standard ISO 8434-2 Thread standard ASME B1.1	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

JIC 37\u00b0 Female Swivel end

37° flare swivel connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.

IM-0600 · HTML DRAFT 01
Layout example based on the group 0600 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
