Standard Hose Insert × Metric 24° Female, Elbow 45°

ISO 8434-1

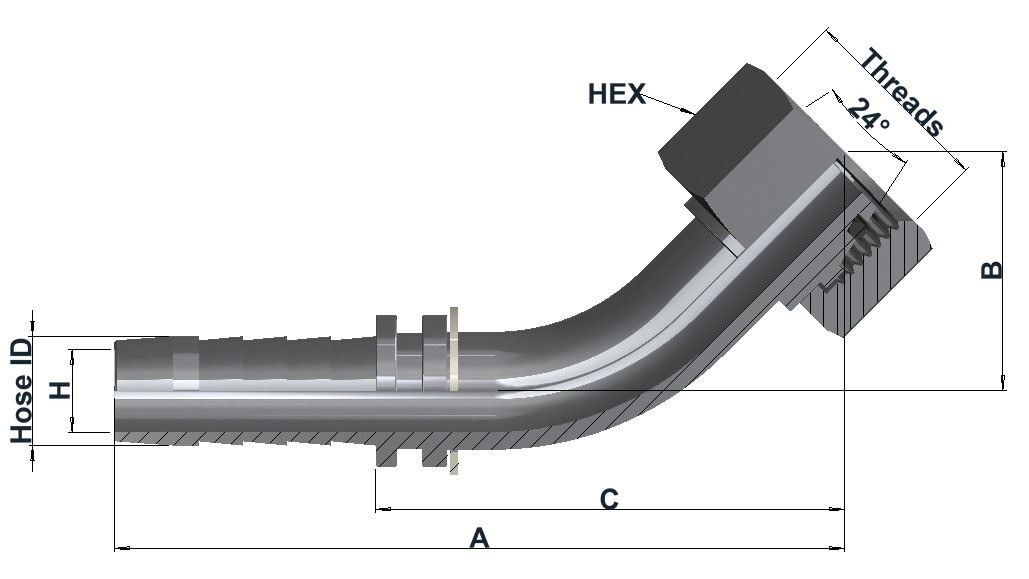

Group 2145 dimensional drawing — 45° Bend — Light Series

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Tube size	Threads	A	B	C	H	Hex	Weight (kg)
21450408316	1/4"	8	8L	M14×1.5	62	16	39	Ø4.5	17	0.031
21450410316	1/4"	8	10L	M16×1.5	63	17	40	Ø4.5	19	0.041
21450612316	3/8"	10	12L	M18×1.5	75	20	45	Ø7	22	0.058
21450815316	1/2"	15	15L	M22×1.5	86	23	55	Ø10	27	0.104
21450818316	1/2"	15	18L	M26×1.5	86	23	55	Ø10	32	0.129
21451018316	5/8"	16	18L	M26×1.5	99	31	65	Ø12	32	0.153
21451222316	3/4"	20	22L	M30×2.0	114	33	76	Ø15	36	0.246
21451628316	1"	25	28L	M36×2.0	140	37	92	Ø19	41	0.404
21452035316	1 1/4"	32	35L	M45×2.0	171	47	116	Ø24	50	0.750
21452442316	1 1/2"	40	42L	M52×2.0	191	53	133	Ø30	60	1.132

Article number structure

2145 | 04 | 08 | 316

Series | Hose size code | Metric tube size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Standard Hose Insert Hose size 1/4"–1 1/2" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 2145 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type Metric 24° Female Swivel Configuration 45° Bend · Light Series Connection standard ISO 8434-1 Thread standard ISO 724	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

Metric 24° female end

24° female swivel end to ISO 8434-1 with ISO metric thread to ISO 724, tolerance class 6H to ISO 965-1.

IM-2145 · HTML DRAFT 01
Layout example based on the group 2145 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
