Standard Hose Insert × CO2 Female Swivel

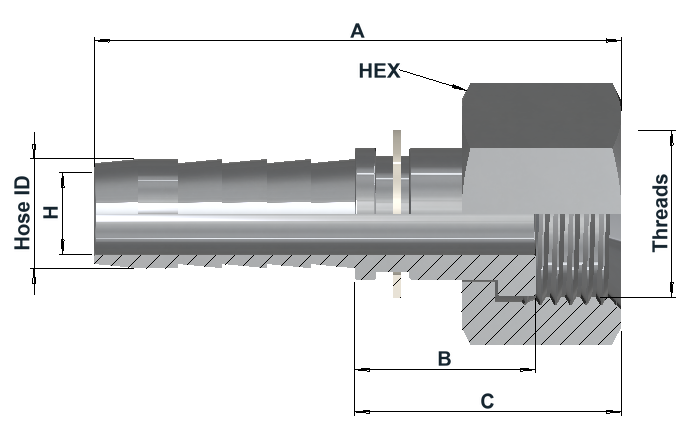

Group CO200 CO2 Female Swivel dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	A	B	C	H	Hex
CO20006316	3/8"	10	Co2/W21.8	60	20	30	7	27
CO20008316	1/2"	15	Co2/W21.8	63	22	32	10	27

Article number structure

CO200 | 06 | 316

Series | Hose size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Standard Hose Insert Hose size 3/8"–1/2" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series CO200 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications and separate verification for gas service.	Type CO2 Female Swivel Configuration Straight Catalogue thread Co2/W21.8 Pitch 1/14" (14 TPI) Connection reference DIN 477 No. 6 (verify conformity)	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Standard hose insert. Select a hose, sleeve and seal specifically suitable for the gas, pressure and temperature. Use validated assembly and crimping specifications. The sleeve table identifies standard insert combinations; it does not establish gas-service approval. Assembly working pressure must not exceed the lowest component rating, including applicable temperature and service derating.

CO2 Female Swivel end

Catalogue thread designation Co2/W21,8. The corresponding common cylinder connection is DIN 477 No. 6, W21.8 x 1/14" right-hand thread, 14 threads per inch (14 TPI). This is a connection reference; Full conformity with the referenced standard must be confirmed. Verify the mating valve, sealing geometry and specified seal before assembly.

Application

CO2 gas supply connections, for example shielding-gas equipment, subject to approval of the complete assembly. Confirm suitability separately for liquid CO2, low-temperature service or food-contact applications. The swivel nut facilitates assembly; it is not a continuous-rotation joint.
