Standard Hose Insert × BSPP Male Flat Face

ISO 228-1

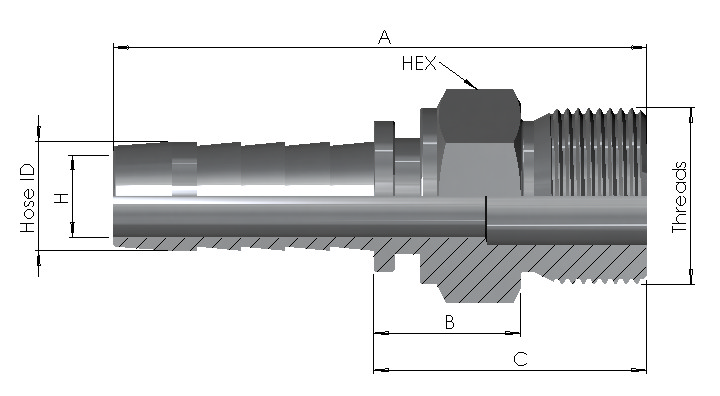

Group 0400 BSPP Male Flat Face dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	A	B	C	H	Hex	Weight (kg)
04000404316	1/4"	8	G 1/4"	54	16	27	Ø4.5	17	0.024
04000406316	1/4"	8	G 3/8"	57	17	30	Ø4.5	19	0.033
04000604316	3/8"	10	G 1/4"	57	16	27	Ø6.5	17	0.034
04000606316	3/8"	10	G 3/8"	60	17	30	Ø7	19	0.040
04000608316	3/8"	10	G 1/2"	63	18.5	33.5	Ø7	22	0.058
04000806316	1/2"	15	G 3/8"	61.5	17	30	Ø9.5	22	0.070
04000808316	1/2"	15	G 1/2"	64.5	18.5	33.5	Ø10	22	0.084
04000812316	1/2"	15	G 3/4"	68.5	21	38	Ø10	27	0.140
04001208316	3/4"	20	G 1/2"	71.5	18.5	33.5	Ø15	27	0.138
04001212316	3/4"	20	G 3/4"	76	21	38	Ø15	27	0.156
04001216316	3/4"	20	G 1"	81	21	38	Ø15	36	0.210
04001616316	1"	25	G 1"	91	21	43	Ø20	36	0.250

Article number structure

0400 | 04 | 04 | 316

Series | Hose size code | BSPP size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Standard Hose Insert Hose size 1/4"–1" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 0400 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type BSPP Male Configuration Straight · Flat Face Sealing Flat sealing Thread standard ISO 228-1	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

BSPP Male end

Flat-sealing connection with parallel G thread to ISO 228-1.

IM-0400 · HTML DRAFT 01
Layout example based on the group 0400 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
