Standard Hose Insert × BSPP Female Swivel 60° Cone, Elbow 90°

ISO 8434-6

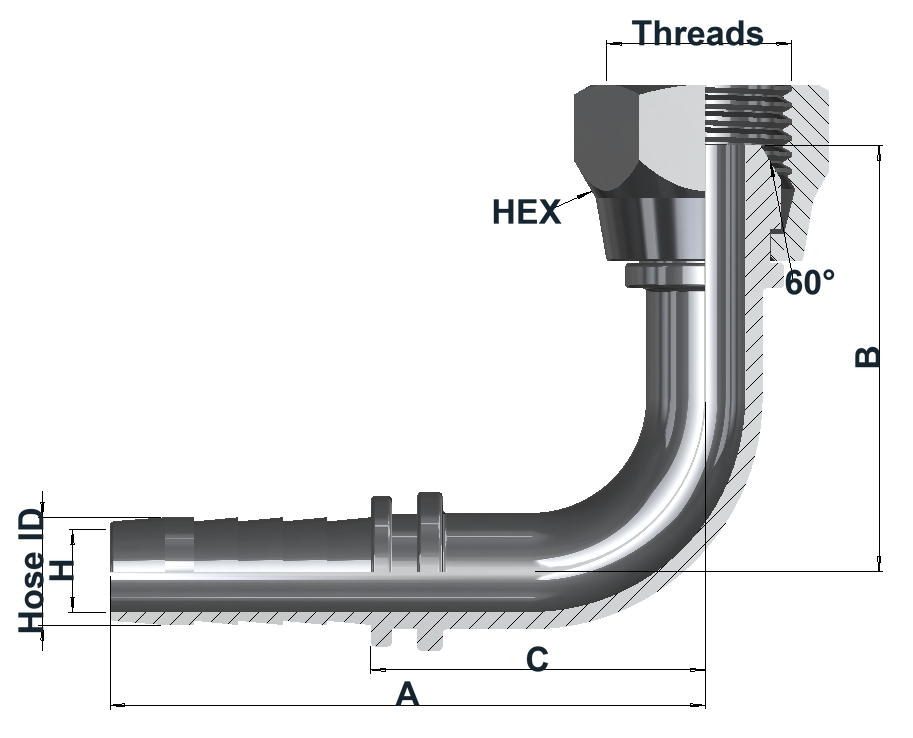

Group 0190 BSPP Female Swivel 60° Cone, 90° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	A	B	C	H	Hex	Weight (kg)
01900404316	1/4"	8	G 1/4"	53	30	30	Ø4.5	19	0.035
01900606316	3/8"	10	G 3/8"	64	37	34	Ø7	22	0.069
01900808316	1/2"	15	G 1/2"	73	47	42	Ø10	27	0.100
01901010316	5/8"	16	G 5/8"	88	50	54	Ø12	30	0.167
01901212316	3/4"	20	G 3/4"	101	62	63	Ø15	32	0.250
01901616316	1"	25	G 1"	124	76	76	Ø19	41	0.474
01902020316	1 1/4"	32	G 1 1/4"	155	90	100	Ø24	50	0.878
01902424316	1 1/2"	40	G 1 1/2"	175	108	117	Ø30	55	1.347
01903232316	2"	50	G 2"	225	148	163	Ø40	75	3.420

Article number structure

0190 | 04 | 04 | 316

Series | Hose size code | BSPP size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Standard Hose Insert Hose size 1/4"–2" (see variants) Compatible sleeve series 4101, 4102, 4202, 4204, 4300, 4400, 4607, 4608 Hose types & compatibility 4101 — 1-wire braided — non-skive 4102 — 2-wire braided — non-skive 4202 — 2-wire braided — skive 4204 — 4-wire reinforced — skive 4300 — 1- and 2-wire braided — non-skive 4400 — PTFE (Teflon) 4607 — Thermoplastic — SAE 100 R7 4608 — Thermoplastic — SAE 100 R8 Series 0190 hose inserts can be used with the sleeve series listed in the table. Select the sleeve series and size to suit the actual hose type and dimensions. Compatibility applies only to sizes available in both product series and remains subject to validated assembly and crimping specifications.	Type BSPP Female Swivel Configuration 90° Bend · 60° Cone Connection standard ISO 8434-6 Thread standard ISO 228-1	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Intended for use with standard hydraulic hoses with 1–4 reinforcement layers, as well as PTFE and thermoplastic hoses, subject to verified hose, insert and ferrule compatibility. Use validated hose preparation and crimping data. Assembly working pressure must not exceed the lowest component pressure rating, adjusted for temperature and service conditions.

BSPP Female Swivel end

60° cone swivel connections to ISO 8434-6 with parallel G threads to ISO 228-1.

IM-0190 · HTML DRAFT 01
Layout example based on the group 0190 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
