PRODUCT GROUP8500JIC 37°
MATERIALSS316LStainless steel

JIC Sleeve for Metric Tube

ISO 8434-2

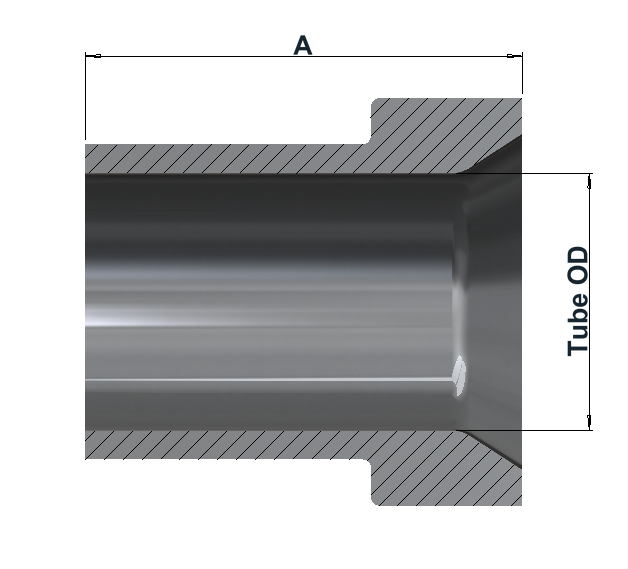

JIC Sleeve for Metric Tube dimensional drawing

Dimensions

Dimensions in mm

Item numberTube ODNut SizeA
850006063166 mm7/16"-2010.4
850008083168 mm1/2"-2011.2
8500101031610 mm9/16"-1812.7
8500121231612 mm3/4"-1614
8500141431614 mm7/8"-1417
8500151531615 mm7/8"-1417
8500161631616 mm7/8"-1417
8500181831618 mm1 1/16"-1217
8500202031620 mm1 1/16"-1217
8500252531625 mm1 5/16"-1220
8500303031630 mm1 5/8"-1223
8500383831638 mm1 7/8"-1228.5

Article number structure

8500 | 12 | 12 | 316

Series | Tube size code 1 | Tube size code 2 | Material

Download Datasheet

Product specifications

ComponentTube & assemblyGeneral product information
Type
Tube sleeve
System
JIC 37°
Connection standard
ISO 8434-2
Tube sizes
See dimensions
Nut thread
UN/UNF · ASME B1.1
Related nut series
8510
Material:
AISI 316L / EN 1.4404 / UNS S31603
HS code
73079900
Country of origin
Norway

Technical info

Assembly

Metric tube sleeve for use in the JIC 37° connection system to ISO 8434-2.

Nut Size identifies the mating UN/UNF nut thread; thread form to ASME B1.1.
