PRODUCT GROUP8501JIC 37°
MATERIALSS316LStainless steel

JIC Sleeve for Inch Tube

ISO 8434-2

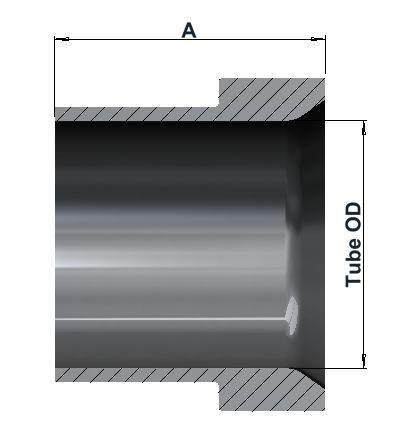

JIC Sleeve for Inch Tube dimensional drawing

Dimensions

Dimensions in mm

Item numberTube ODNut SizeA
850104043161/4"7/16"-2010.4
850106063163/8"9/16"-1812.7
850108083161/2"3/4"-1614
850112123163/4"1 1/16"-1217
850116163161"1 5/16"-1220

Article number structure

8501 | 08 | 08 | 316

Series | Tube size code 1 | Tube size code 2 | Material

Download Datasheet

Product specifications

ComponentTube & assemblyGeneral product information
Type
Tube sleeve
System
JIC 37°
Connection standard
ISO 8434-2
Tube sizes
See dimensions
Nut thread
UN/UNF · ASME B1.1
Related nut series
8510
Material:
AISI 316L / EN 1.4404 / UNS S31603
HS code
73079900
Country of origin
Norway

Technical info

Assembly

Inch tube sleeve for use in the JIC 37° connection system to ISO 8434-2.

Nut Size identifies the mating UN/UNF nut thread; thread form to ASME B1.1.

IM-8501 · HTML DRAFT 01
Product group 8501.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
