Interlock Hose Insert × SAE 6000 Flange, Elbow 90°

ISO 6162-2SAE J518

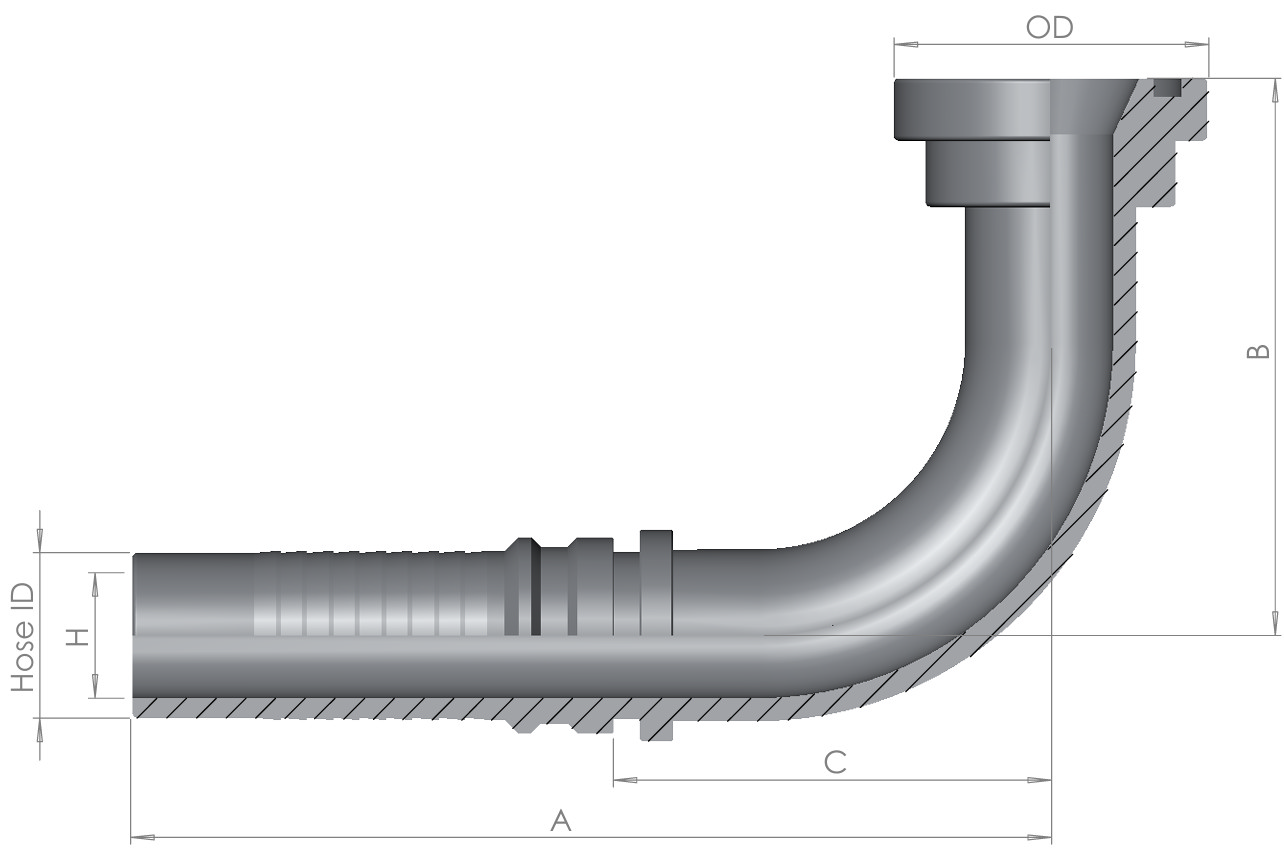

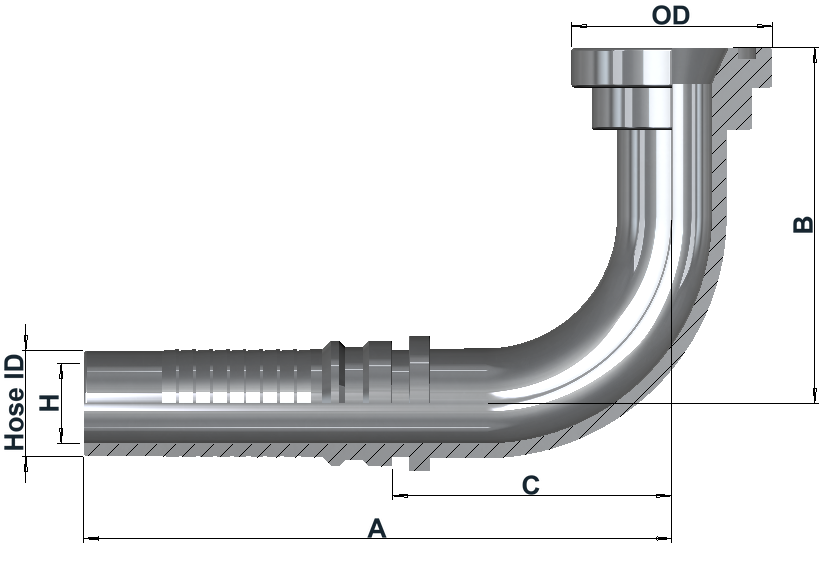

Group IL2890 SAE 6000 Flange 90° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	SAE 6000	A	B	C	OD	H
IL28901212316	3/4"	20	3/4"	122	62	60	Ø41.3	Ø14
IL28901616316	1"	25	1"	147	73	75	Ø47.6	Ø19
IL28902020316	1 1/4"	32	1 1/4"	186	94	98	Ø54	Ø24
IL28902424316	1 1/2"	40	1 1/2"	209	113	115	Ø63.5	Ø30
IL28903232316	2"	50	2"	261	150	163	Ø79.4	Ø40

Article number structure

IL2890 | 12 | 12 | 316

Series | Hose size code | Flange size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Flange connection	General product information
Type Interlock Hose Insert Hose size 3/4"–2" (see variants) Compatible sleeve series 5004, 5006 Hose types & compatibility 5004 — 4-wire spiral — EN 856 4SP — 3/4"–2" 5006 — 6-wire spiral — R13 / R15 — 1"–2" Series IL2890 hose inserts can be used with sleeve series 5004 and 5006 in the sizes listed. Select the sleeve to suit the actual hose construction and dimensions. Compatibility remains subject to validated internal and external skiving dimensions, assembly and crimping specifications.	Type SAE 6000 Flange Configuration 90° Bend · Code 62 Connection standard ISO 6162-2 / SAE J518 Sealing O-ring	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Interlock insert intended for four- and six-spiral hydraulic hoses with the matching Interlock sleeve series listed above, subject to verified hose, insert and ferrule compatibility. Requires both external and internal skiving to the specified lengths and depths without damaging the wire reinforcement. Use a matching Interlock ferrule and the validated assembly and crimping specifications for the actual hose type and size. Assembly working pressure must not exceed the lowest component pressure rating, with applicable temperature and service derating taken into account.

SAE flange end

Code 62 flange connection to ISO 6162-2 / SAE J518, sealed by an O-ring between the flange head and mating port face. Use matching flange clamps, fasteners and an O-ring suitable for the fluid and operating temperature. Assemble and tighten to the applicable specifications. The SAE 6000 designation identifies the flange series; the allowable assembly working pressure remains subject to the component ratings and service conditions.

IM-IL2890 · HTML DRAFT 01
Layout example based on the group IL2890 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
