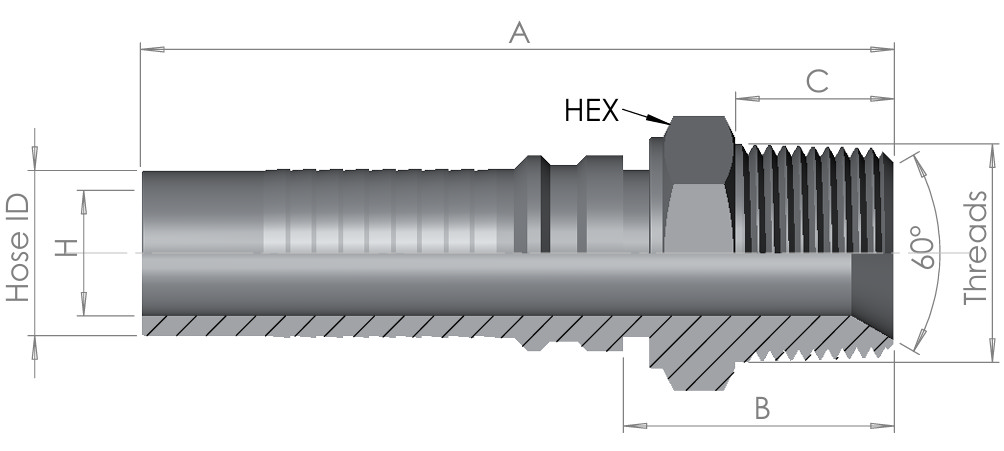

Interlock Hose Insert × NPT Male

ASME B1.20.1

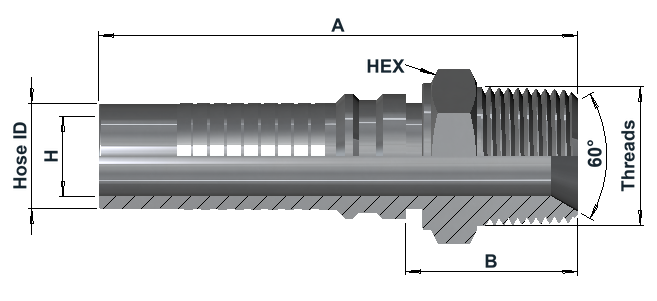

Group IL1100 NPT Male dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	A	B	H	Hex
IL11001212316	3/4"	20	3/4"NPT	102	40	Ø14	27
IL11001616316	1"	25	1"NPT	119	47	Ø19	36
IL11002020316	1 1/4"	32	1 1/4"NPT	136	48	Ø25	46
IL11002424316	1 1/2"	40	1 1/2"NPT	144	51	Ø31	50
IL11003232316	2"	50	2"NPT	162	64	Ø42	65

Article number structure

IL1100 | 12 | 12 | 316

Series | Hose size code | NPT thread size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Interlock Hose Insert Hose size 3/4"–2" (see variants) Compatible sleeve series 5004, 5006 Hose types & compatibility 5004 — 4-wire spiral — EN 856 4SP — 3/4"–2" 5006 — 6-wire spiral — R13 / R15 — 1"–2" Series IL1100 hose inserts can be used with sleeve series 5004 and 5006 in the sizes listed. Select the sleeve to suit the actual hose construction and dimensions. Compatibility remains subject to validated internal and external skiving dimensions, assembly and crimping specifications.	Type NPT Male Configuration Straight Thread standard ASME B1.20.1	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Interlock insert intended for four- and six-spiral hydraulic hoses with the matching Interlock sleeve series listed above, subject to verified hose, insert and ferrule compatibility. Requires both external and internal skiving to the specified lengths and depths without damaging the wire reinforcement. Use a matching Interlock ferrule and the validated assembly and crimping specifications for the actual hose type and size. Assembly working pressure must not exceed the lowest component pressure rating, with applicable temperature and service derating taken into account.

NPT male side

Tapered pipe thread to ASME B1.20.1.

IM-IL1100 · HTML DRAFT 01
Layout example based on the group IL1100 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
