Interlock Hose Insert × JIC 37° Female Swivel, Elbow 45°

ISO 8434-2

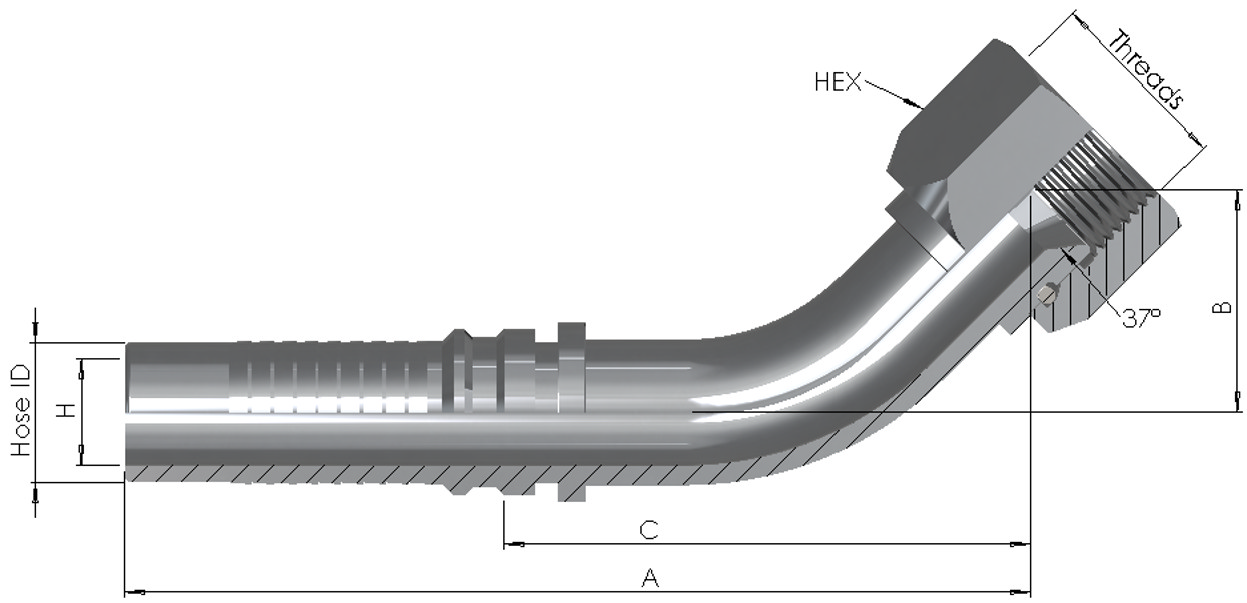

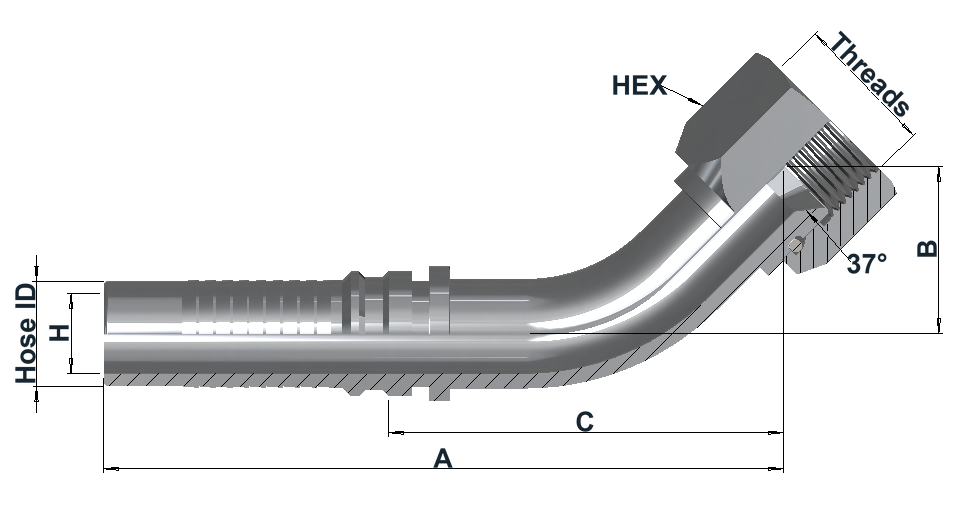

Group IL0645 JIC 37° Female Swivel, Elbow 45° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	Dash	A	B	C	H	Hex
IL06451217316	3/4"	20	1 1/16"-12UN	-12	136	29	74	Ø14	32
IL06451621316	1"	25	1 5/16"-12UN	-16	162	34	90	Ø19	41
IL06452026316	1 1/4"	32	1 5/8"-12UN	-20	203	39	115	Ø24	50
IL06452430316	1 1/2"	40	1 7/8"-12UN	-24	227	51	133	Ø30	55
IL06453240316	2"	50	2 1/2"-12UN	-32	281	68	183	Ø40	75

Article number structure

IL0645 | 12 | 17 | 316

Series | Hose size code | JIC thread size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Interlock Hose Insert Hose size 3/4"–2" (see variants) Compatible sleeve series 5004, 5006 Hose types & compatibility 5004 — 4-wire spiral — EN 856 4SP — 3/4"–2" 5006 — 6-wire spiral — R13 / R15 — 1"–2" Series IL0645 hose inserts can be used with sleeve series 5004 and 5006 in the sizes listed. Select the sleeve to suit the actual hose construction and dimensions. Compatibility remains subject to validated internal and external skiving dimensions, assembly and crimping specifications.	Type JIC 37\u00b0 Female Swivel Configuration 45° Bend · 37° flare Connection standard ISO 8434-2 Thread standard ASME B1.1	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Interlock insert intended for four- and six-spiral hydraulic hoses with the matching Interlock sleeve series listed above, subject to verified hose, insert and ferrule compatibility. Requires both external and internal skiving to the specified lengths and depths without damaging the wire reinforcement. Use a matching Interlock ferrule and the validated assembly and crimping specifications for the actual hose type and size. Assembly working pressure must not exceed the lowest component pressure rating, with applicable temperature and service derating taken into account.

JIC 37\u00b0 Female Swivel end

37° flare swivel connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.

IM-IL0645 · HTML DRAFT 01
Layout example based on the group IL0645 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
