Interlock Hose Insert × BSPP Male 60° Internal Cone

ISO 8434-6ISO 1179-2

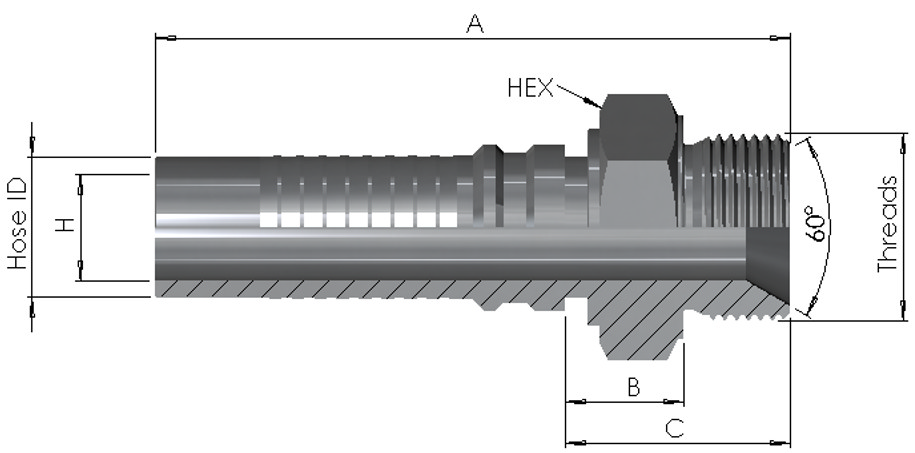

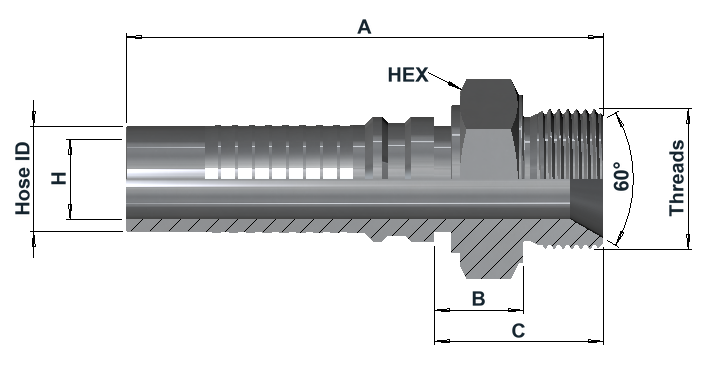

Group IL0200 BSPP Male 60° Internal Cone dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	A	B	C	H	Hex
IL02001212316	3/4"	20	G 3/4"	99	20	37	Ø14	32
IL02001616316	1"	25	G 1"	113	22	41	Ø19	41
IL02002020316	1 1/4"	32	G 1 1/4"	133	23	45	Ø25	50
IL02002424316	1 1/2"	40	G 1 1/2"	139	24	46	Ø31	55
IL02003232316	2"	50	G 2"	154	30	56	Ø42	70

Article number structure

IL0200 | 12 | 12 | 316

Series | Hose size code | BSPP thread size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Interlock Hose Insert Hose size 3/4"–2" (see variants) Compatible sleeve series 5004, 5006 Hose types & compatibility 5004 — 4-wire spiral — EN 856 4SP — 3/4"–2" 5006 — 6-wire spiral — R13 / R15 — 1"–2" Series IL0200 hose inserts can be used with sleeve series 5004 and 5006 in the sizes listed. Select the sleeve to suit the actual hose construction and dimensions. Compatibility remains subject to validated internal and external skiving dimensions, assembly and crimping specifications.	Type BSPP Male Configuration Straight · 60° Internal Cone Connection standard ISO 8434-6 / ISO 1179-2 Thread standard ISO 228-1	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Interlock insert intended for four- and six-spiral hydraulic hoses with the matching Interlock sleeve series listed above, subject to verified hose, insert and ferrule compatibility. Requires both external and internal skiving to the specified lengths and depths without damaging the wire reinforcement. Use a matching Interlock ferrule and the validated assembly and crimping specifications for the actual hose type and size. Assembly working pressure must not exceed the lowest component pressure rating, with applicable temperature and service derating taken into account.

BSPP Male end

Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.

IM-IL0200 · HTML DRAFT 01
Layout example based on the group IL0200 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
