Interlock Hose Insert × BSPP Female Swivel 60° Cone, Elbow 90°

ISO 8434-6

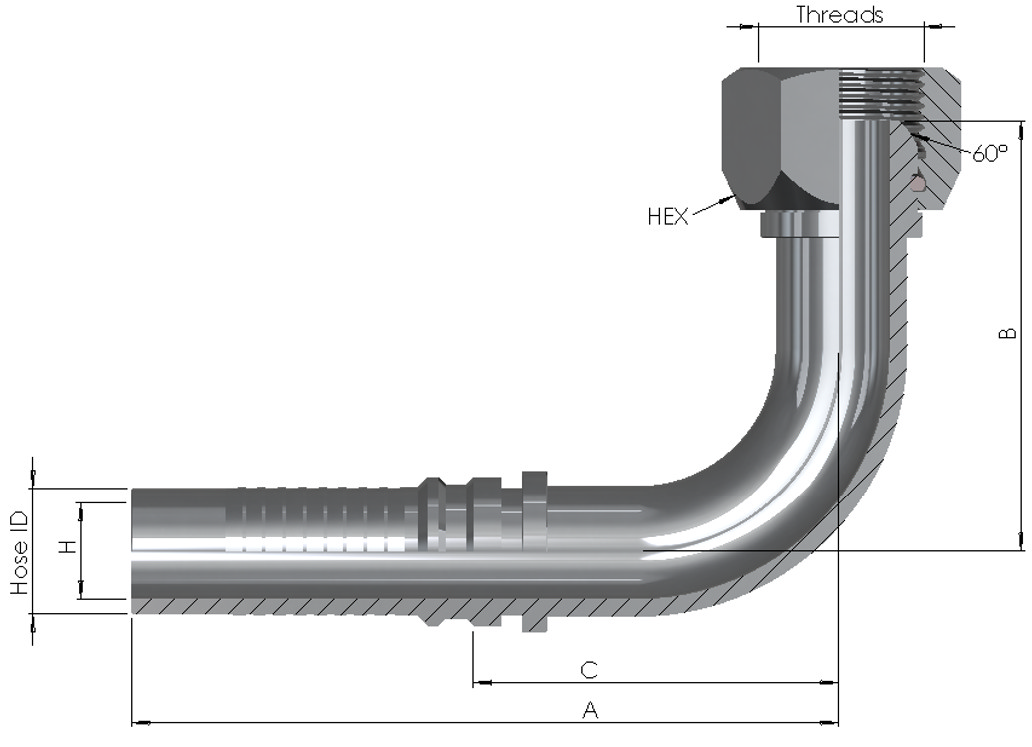

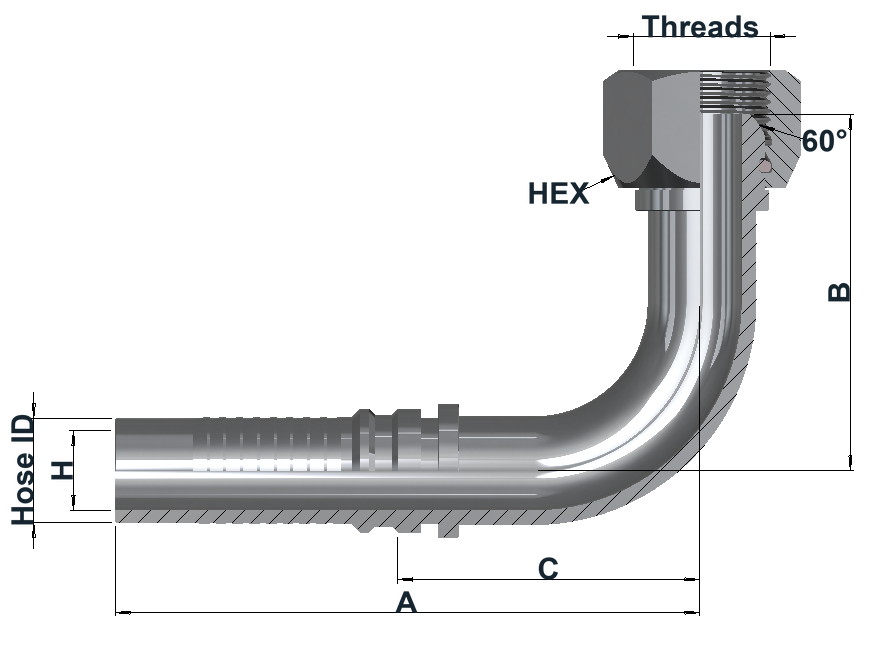

Group IL0190 BSPP Female Swivel 60° Cone, 90° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	Hose ID	DN	Threads	A	B	C	H	Hex
IL01901212316	3/4"	20	G 3/4"	122	62	60	Ø14	32
IL01901616316	1"	25	G 1"	147	76	75	Ø19	41
IL01902020316	1 1/4"	32	G 1 1/4"	186	90	98	Ø24	50
IL01902424316	1 1/2"	40	G 1 1/2"	209	108	115	Ø30	55
IL01903232316	2"	50	G 2"	261	148	163	Ø40	75

Article number structure

IL0190 | 12 | 12 | 316

Series | Hose size code | BSPP thread size code | Material

Download Datasheet

Product specifications

End 1 — Hose connection	End 2 — Threaded connection	General product information
Type Interlock Hose Insert Hose size 3/4"–2" (see variants) Compatible sleeve series 5004, 5006 Hose types & compatibility 5004 — 4-wire spiral — EN 856 4SP — 3/4"–2" 5006 — 6-wire spiral — R13 / R15 — 1"–2" Series IL0190 hose inserts can be used with sleeve series 5004 and 5006 in the sizes listed. Select the sleeve to suit the actual hose construction and dimensions. Compatibility remains subject to validated internal and external skiving dimensions, assembly and crimping specifications.	Type BSPP Female Swivel Configuration 90° Bend · 60° Cone Connection standard ISO 8434-6 Thread standard ISO 228-1	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose end

Interlock insert intended for four- and six-spiral hydraulic hoses with the matching Interlock sleeve series listed above, subject to verified hose, insert and ferrule compatibility. Requires both external and internal skiving to the specified lengths and depths without damaging the wire reinforcement. Use a matching Interlock ferrule and the validated assembly and crimping specifications for the actual hose type and size. Assembly working pressure must not exceed the lowest component pressure rating, with applicable temperature and service derating taken into account.

BSPP Female Swivel end

60° cone swivel connections to ISO 8434-6 with parallel G threads to ISO 228-1.

IM-IL0190 · HTML DRAFT 01
Layout example based on the group IL0190 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
