PRODUCT GROUP939010K
NPT Male, Elbow 90°
ASME B1.20.1
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

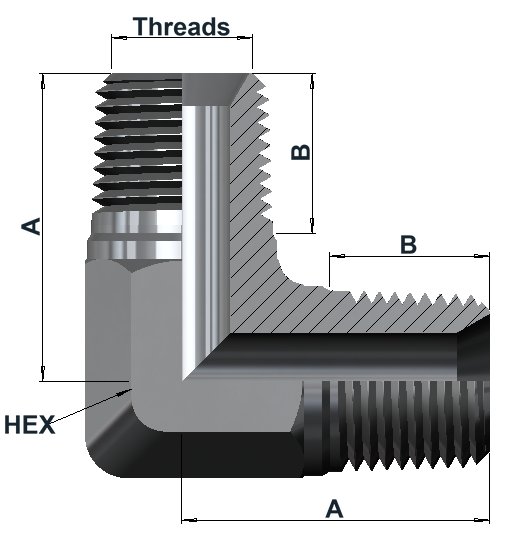

Dimensions & variants
Dimensions in mm
| Item number | NPT Male 1 | NPT Male 2 | A | B | Hex | Weight (kg) |
|---|---|---|---|---|---|---|
| 9390040431610K | 1/4"NPT | 1/4"NPT | 26.5 | 14 | 16 | 0.056 |
| 9390060631610K | 3/8"NPT | 3/8"NPT | 31.5 | 15 | 20 | 0.105 |
| 9390080831610K | 1/2"NPT | 1/2"NPT | 36.5 | 19 | 23 | 0.156 |
| 9390121231610K | 3/4"NPT | 3/4"NPT | 41.5 | 20 | 28 | 0.260 |
| 9390161631610K | 1"NPT | 1"NPT | 47 | 24 | 34 | 0.443 |
Article number structure
9390 | 08 | 08 | 316 | 10KSeries | NPT male thread code 1 | NPT male thread code 2 | Material | Pressure class
Product specifications
| End 1 — NPT Male | End 2 — NPT Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT male ends: Tapered pipe threads to ASME B1.20.1. 90° elbow configuration with identical connection size on both ends.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
