PRODUCT GROUP930015K
NPT Male × NPT Male
ASME B1.20.1
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

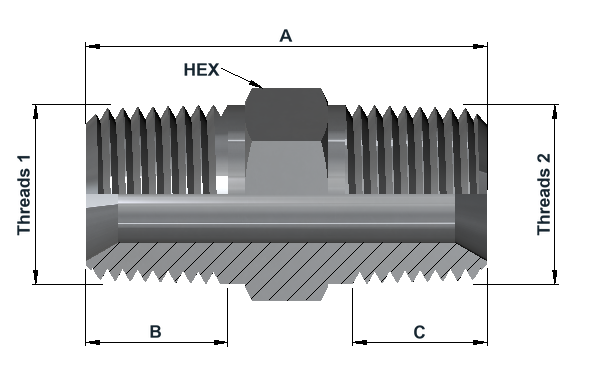

Dimensions & variants
Dimensions in mm
| Item number | NPT Male 1 | NPT Male 2 | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 9300040431615K | 1/4"NPT | 1/4"NPT | 38 | 14 | 14 | 17 | 0.039 |
| 9300040631615K | 1/4"NPT | 3/8"NPT | 39 | 14 | 15 | 19 | 0.049 |
| 9300040831615K | 1/4"NPT | 1/2"NPT | 43 | 14 | 19 | 22 | 0.073 |
| 9300060631615K | 3/8"NPT | 3/8"NPT | 40 | 15 | 15 | 19 | 0.054 |
| 9300060831615K | 3/8"NPT | 1/2"NPT | 44 | 15 | 19 | 22 | 0.076 |
| 9300080831615K | 1/2"NPT | 1/2"NPT | 48 | 19 | 19 | 22 | 0.090 |
| 9300081231615K | 1/2"NPT | 3/4"NPT | 49 | 19 | 20 | 27 | 0.126 |
| 9300121231615K | 3/4"NPT | 3/4"NPT | 50 | 20 | 20 | 27 | 0.143 |
| 9300121631615K | 3/4"NPT | 1"NPT | 56 | 20 | 24 | 36 | 0.257 |
| 9300161631615K | 1"NPT | 1"NPT | 60 | 24 | 24 | 36 | 0.286 |
Article number structure
9300 | 08 | 12 | 316 | 15KSeries | NPT male thread code 1 | NPT male thread code 2 | Material | Pressure class
Product specifications
| End 1 — NPT Male | End 2 — NPT Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT male side 1: Tapered pipe thread to ASME B1.20.1.
NPT male side 2: Tapered pipe thread to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
