NPT Male × NPT Male

ASME B1.20.1

Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

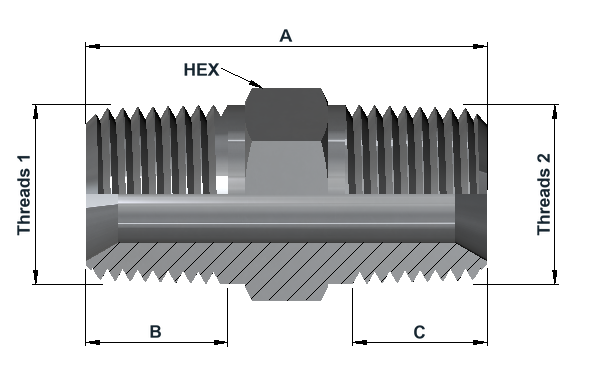

9300 10K NPT Male × NPT Male dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	NPT Male 1	NPT Male 2	A	B	C	Hex	Weight (kg)
9300020231610K	1/8"NPT	1/8"NPT	30	11	11	14	0.020
9300020431610K	1/8"NPT	1/4"NPT	35	11	14	17	0.033
9300040431610K	1/4"NPT	1/4"NPT	38	14	14	17	0.037
9300040631610K	1/4"NPT	3/8"NPT	39	14	15	19	0.047
9300040831610K	1/4"NPT	1/2"NPT	43	14	19	22	0.070
9300060631610K	3/8"NPT	3/8"NPT	40	15	15	19	0.052
9300060831610K	3/8"NPT	1/2"NPT	44	15	19	22	0.074
9300080831610K	1/2"NPT	1/2"NPT	48	19	19	22	0.087
9300081231610K	1/2"NPT	3/4"NPT	49	19	20	27	0.121
9300081631610K	1/2"NPT	1"NPT	55	19	24	36	0.220
9300121231610K	3/4"NPT	3/4"NPT	50	20	20	27	0.137
9300121631610K	3/4"NPT	1"NPT	56	20	24	36	0.243
9300161631610K	1"NPT	1"NPT	60	24	24	36	0.278
9300162031610K	1"NPT	1 1/4"NPT	62	24	24.5	46	0.372
9300162431610K	1"NPT	1 1/2"NPT	63	24	25.5	50	0.467
9300163231610K	1"NPT	2"NPT	74	24	33	65	0.890
9300202031610K	1 1/4"NPT	1 1/4"NPT	62	24.5	24.5	46	0.392
9300202431610K	1 1/4"NPT	1 1/2"NPT	64	24.5	25.5	50	0.490
9300203231610K	1 1/4"NPT	2"NPT	74	24.5	33	65
9300242431610K	1 1/2"NPT	1 1/2"NPT	65	25.5	25.5	50	0.536
9300243231610K	1 1/2"NPT	2"NPT	75	25.5	33	65
9300323231610K	2"NPT	2"NPT	84	33	33	65	1.139

Article number structure

9300 | 16 | 24 | 316 | 10K

Series | NPT male thread code 1 | NPT male thread code 2 | Material | Pressure class

Download Datasheet

Product specifications

End 1 — NPT Male	End 2 — NPT Male	General product information
Type NPT Male Sealing Tapered pipe thread Thread standard ASME B1.20.1	Type NPT Male Sealing Tapered pipe thread Thread standard ASME B1.20.1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 10,000 PSI / 689 bar / 68.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

NPT male side 1: Tapered pipe thread to ASME B1.20.1.

NPT male side 2: Tapered pipe thread to ASME B1.20.1.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-9300-10K · HTML DRAFT 01
Layout example based on the group 9300 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
