PRODUCT GROUP880010K
NPT Male × JIC 37° Male
ASME B1.20.1ISO 8434-2
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

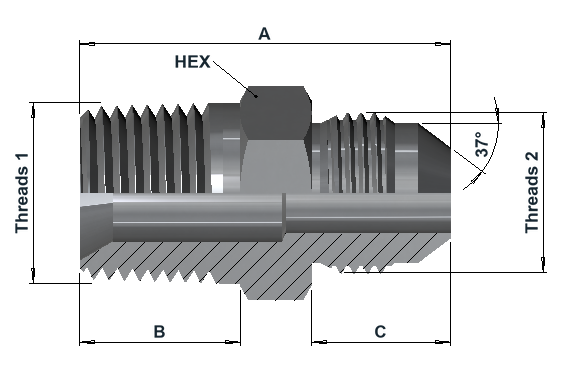

Dimensions & variants
Dimensions in mm
| Item number | NPT Male | JIC Male | Dash | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 8800040731610K | 1/4"NPT | 7/16"-20UN | -04 | 36 | 14 | 14.5 | 17 | 0.030 |
| 8800040831610K | 1/4"NPT | 1/2"-20UN | -05 | 36 | 14 | 14.5 | 17 | 0.033 |
| 8800040931610K | 1/4"NPT | 9/16"-18UN | -06 | 36 | 14 | 14.5 | 17 | 0.032 |
| 8800060931610K | 3/8"NPT | 9/16"-18UN | -06 | 37 | 15 | 14.5 | 19 | 0.047 |
| 8800061231610K | 3/8"NPT | 3/4"-16UN | -08 | 40 | 15 | 16.5 | 22 | 0.060 |
| 8800080931610K | 1/2"NPT | 9/16"-18UN | -06 | 42 | 19 | 14.5 | 22 | 0.065 |
| 8800081231610K | 1/2"NPT | 3/4"-16UN | -08 | 44 | 19 | 16.5 | 22 | 0.073 |
| 8800081431610K | 1/2"NPT | 7/8"-14UN | -10 | 48 | 19 | 20 | 24 | 0.093 |
| 8800081731610K | 1/2"NPT | 1 1/16"-12UN | -12 | 51 | 19 | 22 | 30 | 0.146 |
| 8800120931610K | 3/4"NPT | 9/16"-18UN | -06 | 44 | 20 | 14.5 | 27 | 0.101 |
| 8800121231610K | 3/4"NPT | 3/4"-16UN | -08 | 46 | 20 | 16.5 | 27 | 0.108 |
| 8800121431610K | 3/4"NPT | 7/8"-14UN | -10 | 49 | 20 | 20 | 27 | 0.126 |
| 8800121731610K | 3/4"NPT | 1 1/16"-12UN | -12 | 52 | 20 | 22 | 30 | 0.149 |
| 8800122131610K | 3/4"NPT | 1 5/16"-12UN | -16 | 54 | 20 | 23 | 36 | 0.245 |
| 8800161731610K | 1"NPT | 1 1/16"-12UN | -12 | 57 | 24 | 22 | 36 | 0.248 |
| 8800162131610K | 1"NPT | 1 5/16"-12UN | -16 | 58 | 24 | 23 | 36 | 0.249 |
Article number structure
8800 | 08 | 17 | 316 | 10KSeries | NPT male thread code | JIC male thread code | Material | Pressure class
Product specifications
| End 1 — NPT Male | End 2 — JIC Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT male side: Tapered pipe thread to ASME B1.20.1.
JIC male side: 37° flare connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
