NPT Male × JIC 37° Female Swivel

ASME B1.20.1ISO 8434-2

Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

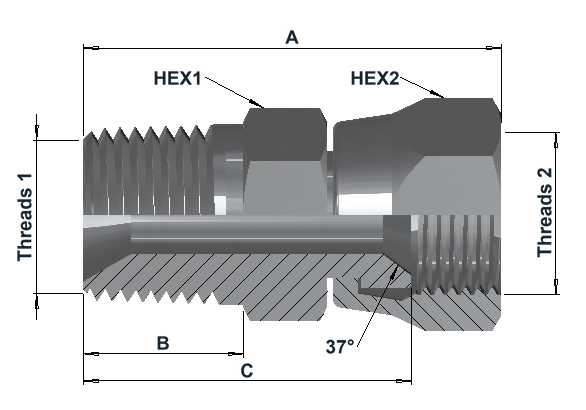

8900 6K NPT Male × JIC 37° Female Swivel dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	NPT Male	JIC Female	Dash	A	B	C	Hex1	Hex2	Weight (kg)
89000407316	1/4"NPT	7/16"-20UN	-04	40	14	32	17	17
89000409316	1/4"NPT	9/16"-18UN	-06	42	14	33	17	19
89000609316	3/8"NPT	9/16"-18UN	-06	42	15	33	19	19	0.067
89000612316	3/8"NPT	3/4"-16UN	-08	43	15	33	19	24	0.070
89000809316	1/2"NPT	9/16"-18UN	-06	47	19	38	22	19	0.090
89000812316	1/2"NPT	3/4"-16UN	-08	49	19	39	22	24	0.102
89000814316	1/2"NPT	7/8"-14UN	-10	52	19	40	22	27
89000817316	1/2"NPT	1 1/16"-12UN	-12	57	19	43	27	32
89001217316	3/4"NPT	1 1/16"-12UN	-12	58	20	44	27	32	0.171
89001621316	1"NPT	1 5/16"-12UN	-16	62	24	48	36	41
89002026316	1 1/4"NPT	1 5/8"-12UN	-20	68	24.5	52	46	50
89002430316	1 1/2"NPT	1 7/8"-12UN	-24	74	25.5	58	50	55
89003240316	2"NPT	2 1/2"-12UN	-32	93	33	70	65	75

Article number structure

8900 | 04 | 07 | 316 | 6K

Series | NPT male thread code | JIC female thread code | Material | Pressure class

Download Datasheet

Product specifications

End 1 — NPT Male	End 2 — JIC 37\u00b0 Female Swivel	General product information
Type NPT Male Sealing Tapered pipe thread Thread standard ASME B1.20.1	Type JIC 37\u00b0 Female Swivel Sealing 37° flare Connection standards ISO 8434-2 Thread standard ASME B1.1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 6,000 PSI / 414 bar / 41.4 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

NPT male side: Tapered pipe thread to ASME B1.20.1.

JIC female swivel side: 37° flare swivel connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-8900-6K · HTML DRAFT 01
Layout example based on the group 8900 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
