PRODUCT GROUP94906K
NPT Male × NPT Female, Elbow 90°
ASME B1.20.1
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

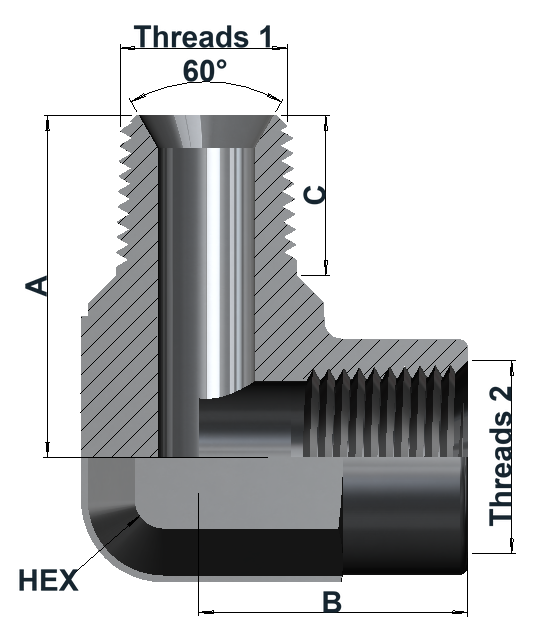

Dimensions & variants
Dimensions in mm
| Item number | NPT Male | NPT Female | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 94900404316 | 1/4"NPT | 1/4"NPT | 31.5 | 22 | 14 | 20 | 0.087 |
| 94900606316 | 3/8"NPT | 3/8"NPT | 36.5 | 26.5 | 15 | 23 | 0.134 |
| 94900808316 | 1/2"NPT | 1/2"NPT | 41.5 | 32 | 19 | 28 | 0.214 |
| 94901212316 | 3/4"NPT | 3/4"NPT | 47 | 37 | 20 | 34 | 0.358 |
| 94901616316 | 1"NPT | 1"NPT | 52.5 | 43 | 24 | 44 | 0.657 |
| 94902020316 | 1 1/4"NPT | 1 1/4"NPT | 60 | 50 | 24.5 | 52 | 1.008 |
| 94902424316 | 1 1/2"NPT | 1 1/2"NPT | 71 | 56 | 25.5 | 62 | 1.800 |
Article number structure
9490 | 04 | 04 | 316 | 6KSeries | NPT male thread code | NPT female thread code | Material | Pressure class
Product specifications
| End 1 — NPT Male | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT male side: Tapered pipe thread to ASME B1.20.1.
NPT female side: Tapered pipe thread to ASME B1.20.1. 90° elbow configuration.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
