NPT Male × NPT Female, Elbow 90°

ASME B1.20.1

Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

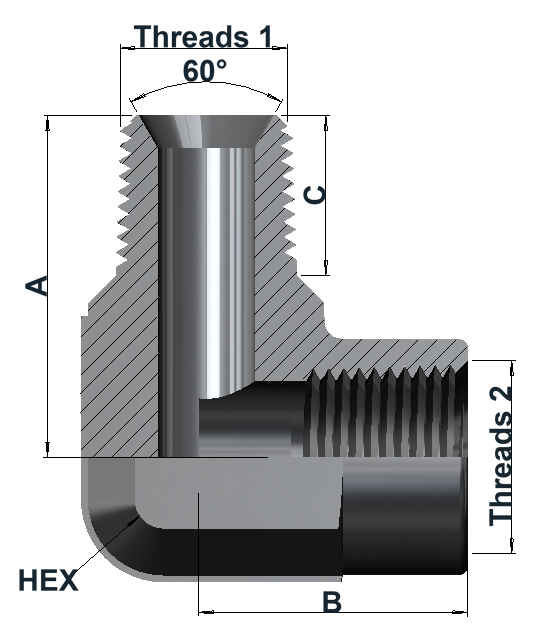

9490 15K NPT Male × NPT Female, Elbow 90° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	NPT Male	NPT Female	A	B	C	Hex	Weight (kg)
9490040431615K	1/4"NPT	1/4"NPT	36.5	26.5	15	23	0.138
9490060631615K	3/8"NPT	3/8"NPT	41.5	32	19	28	0.244
9490080831615K	1/2"NPT	1/2"NPT	47	37	20	34	0.415
9490121231615K	3/4"NPT	3/4"NPT	52.5	43	24	44

Article number structure

9490 | 08 | 08 | 316 | 15K

Series | NPT male thread code | NPT female thread code | Material | Pressure class

Download Datasheet

Product specifications

End 1 — NPT Male	End 2 — NPT Female	General product information
Type NPT Male Sealing Tapered pipe thread Thread standard ASME B1.20.1	Type NPT Female Sealing Tapered pipe thread Thread standard ASME B1.20.1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 15,000 PSI / 1,034 bar / 103.4 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

NPT male side: Tapered pipe thread to ASME B1.20.1.

NPT female side: Tapered pipe thread to ASME B1.20.1. 90° elbow configuration.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-9490-15K · HTML DRAFT 01
Layout example based on the group 9490 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
