NPT Male × NPT Female, Elbow 45°

ASME B1.20.1

Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

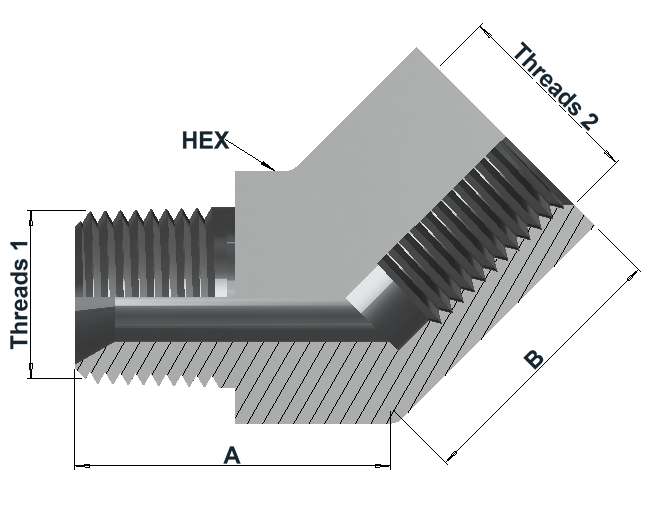

9445 10K NPT Male × NPT Female, Elbow 45° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	NPT Male	NPT Female	A	B	Hex
9445020231610K	1/8"NPT	1/8"NPT	36	36	16
9445040431610K	1/4"NPT	1/4"NPT	42	42	23
9445060631610K	3/8"NPT	3/8"NPT	49	49	28
9445080831610K	1/2"NPT	1/2"NPT	55	55	34
9445121231610K	3/4"NPT	3/4"NPT	56	56	44
9445161631610K	1"NPT	1"NPT	62	62	52

Article number structure

9445 | 08 | 08 | 316 | 10K

Series | NPT male thread code | NPT female thread code | Material | Pressure class

Download Datasheet

Product specifications

End 1 — NPT Male	End 2 — NPT Female	General product information
Type NPT Male Sealing Tapered pipe thread Thread standard ASME B1.20.1	Type NPT Female Sealing Tapered pipe thread Thread standard ASME B1.20.1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 10,000 PSI / 689 bar / 68.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

NPT male side: Tapered pipe thread to ASME B1.20.1.

NPT female side: Tapered pipe thread to ASME B1.20.1. 45° elbow configuration.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-9445-10K · HTML DRAFT 01
Layout example based on the group 9445 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
