PRODUCT GROUP940010K
NPT Male × NPT Female
ASME B1.20.1
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

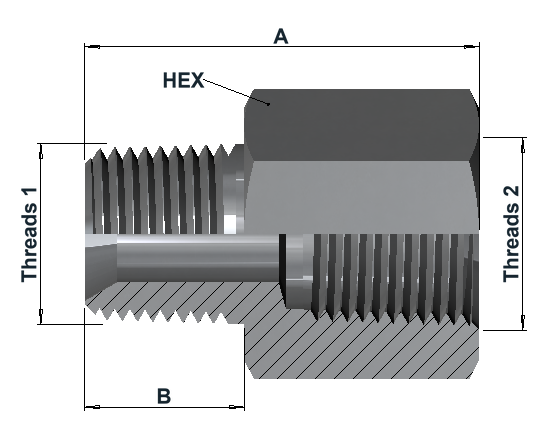

Dimensions & variants
Dimensions in mm
| Item number | NPT Male | NPT Female | A | B | Hex | Weight (kg) |
|---|---|---|---|---|---|---|
| 9400040431610K | 1/4"NPT | 1/4"NPT | 35 | 14 | 22 | 0.065 |
| 9400040631610K | 1/4"NPT | 3/8"NPT | 37 | 14 | 24 | 0.073 |
| 9400040831610K | 1/4"NPT | 1/2"NPT | 43 | 14 | 32 | 0.159 |
| 9400060431610K | 3/8"NPT | 1/4"NPT | 35 | 15 | 22 | 0.066 |
| 9400060631610K | 3/8"NPT | 3/8"NPT | 38 | 15 | 24 | 0.079 |
| 9400060831610K | 3/8"NPT | 1/2"NPT | 43 | 15 | 32 | 0.156 |
| 9400080431610K | 1/2"NPT | 1/4"NPT | 29 | 19 | 22 | 0.056 |
| 9400080631610K | 1/2"NPT | 3/8"NPT | 40 | 19 | 24 | 0.083 |
| 9400080831610K | 1/2"NPT | 1/2"NPT | 47 | 19 | 32 | 0.171 |
| 9400081231610K | 1/2"NPT | 3/4"NPT | 50 | 19 | 36 | 0.293 |
| 9400081631610K | 1/2"NPT | 1"NPT | 55 | 19 | 50 | 0.472 |
| 9400120831610K | 3/4"NPT | 1/2"NPT | 47 | 20 | 32 | 0.179 |
| 9400121231610K | 3/4"NPT | 3/4"NPT | 50 | 20 | 36 | 0.297 |
| 9400121631610K | 3/4"NPT | 1"NPT | 56 | 20 | 50 | 0.490 |
| 9400160831610K | 1"NPT | 1/2"NPT | 38 | 24 | 36 | 0.190 |
| 9400161231610K | 1"NPT | 3/4"NPT | 52 | 24 | 36 | 0.323 |
| 9400161631610K | 1"NPT | 1"NPT | 59 | 24 | 50 | 0.515 |
Article number structure
9400 | 08 | 12 | 316 | 10KSeries | NPT male thread code | NPT female thread code | Material | Pressure class
Product specifications
| End 1 — NPT Male | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT male side: Tapered pipe thread to ASME B1.20.1.
NPT female side: Tapered pipe thread to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
