NPT Male × BSPP Female Fixed

ASME B1.20.1ISO 1179-2

Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

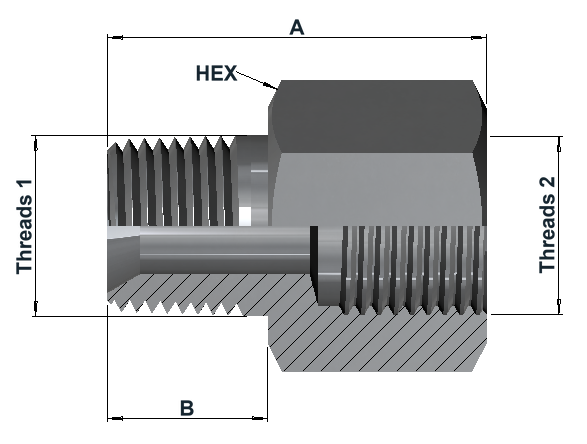

8000 6K NPT Male × BSPP Female Fixed dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	NPT Male	BSPP Female Fixed	A	B	Hex	Weight (kg)
80000404316	1/4"NPT	G 1/4"	34	14	19	0.055
80000406316	1/4"NPT	G 3/8"	37	14	22	0.055
80000408316	1/4"NPT	G 1/2"	40	14	30	0.120
80000604316	3/8"NPT	G 1/4"	34	15	19	0.047
80000606316	3/8"NPT	G 3/8"	38	15	22	0.060
80000608316	3/8"NPT	G 1/2"	40	15	30	0.114
80000804316	1/2"NPT	G 1/4"	29	19	22	0.054
80000806316	1/2"NPT	G 3/8"	40	19	22	0.071
80000808316	1/2"NPT	G 1/2"	44	19	30	0.170
80000812316	1/2"NPT	G 3/4"	48	19	36	0.192
80000816316	1/2"NPT	G 1"	50	19	46	0.550
80001204316	3/4"NPT	G 1/4"	33	20	27	0.116
80001206316	3/4"NPT	G 3/8"	33	20	27	0.097
80001208316	3/4"NPT	G 1/2"	44	20	30	0.148
80001212316	3/4"NPT	G 3/4"	48	20	36	0.215
80001216316	3/4"NPT	G 1"	52	20	46	0.520
80001604316	1"NPT	G 1/4"	38	24	36	0.241
80001606316	1"NPT	G 3/8"	38	24	36	0.218
80001608316	1"NPT	G 1/2"	38	24	36	0.550
80001612316	1"NPT	G 3/4"	50	24	36	0.220
80001616316	1"NPT	G 1"	55	24	46	0.460
80002020316	1 1/4"NPT	G 1 1/4"	59	24.5	55	0.590
80002424316	1 1/2"NPT	G 1 1/2"	62	25.5	60	0.650
80003232316	2"NPT	G 2"	74	30	75	1.100

Article number structure

8000 | 08 | 12 | 316 | 6K

Series | NPT male thread code | BSPP Female Fixed thread code | Material | Pressure class

Download Datasheet

Product specifications

End 1 — NPT Male	End 2 — BSPP Female Fixed	General product information
Type NPT Male Sealing Tapered pipe thread Thread standard ASME B1.20.1	Type BSPP Female Fixed Sealing ISO 1179-2 sealing interface Connection standards ISO 1179-2 Thread standard ISO 228-1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 6,000 PSI / 414 bar / 41.4 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

NPT male side: Tapered pipe thread to ASME B1.20.1.

BSPP Female Fixed side: Fixed female connection with sealing interface to ISO 1179-2 and parallel G thread to ISO 228-1.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-8000-6K · HTML DRAFT 01
Layout example based on the group 8000 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
