NPT Female, Tee

ASME B1.20.1

Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

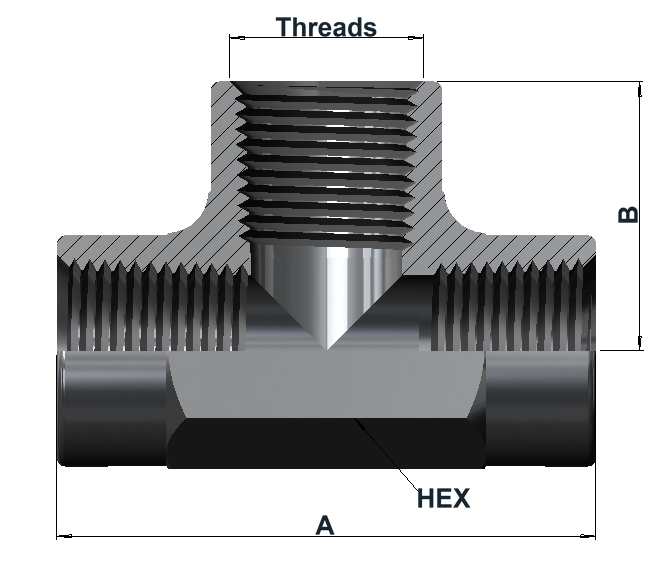

9530 10K NPT Female, Tee dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	NPT Female	A	B	Hex
9530161631610K	1"NPT	100	50	52

Article number structure

9530 | 16 | 16 | 316 | 10K

Series | NPT female thread code 1 | NPT female thread code 2 | Material | Pressure class

Download Datasheet

Product specifications

Ends 1–3 — NPT Female	Configuration	General product information
Type NPT Female Sealing Tapered pipe thread Thread standard ASME B1.20.1	Type Tee Connections Three threaded ports Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 10,000 PSI / 689 bar / 68.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

NPT female ends: Tapered pipe threads to ASME B1.20.1. Equal tee configuration with identical connection size on all three ports.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
