PRODUCT GROUP95W6K
NPT Female/Female Weld Collar
ASME B1.20.1
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

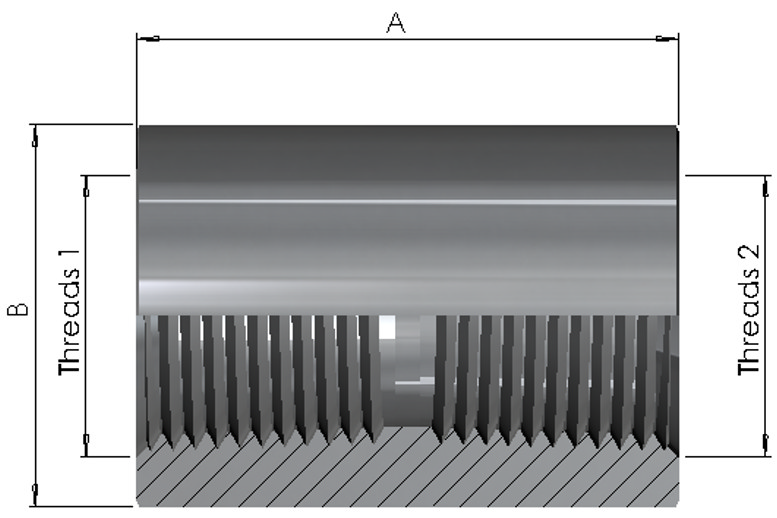

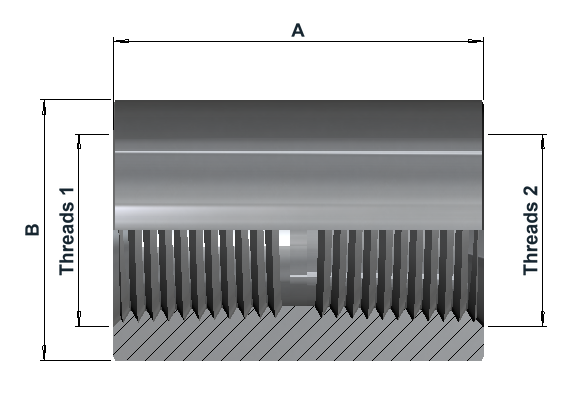

Dimensions & variants
Dimensions in mm
| Item number | NPT Female 1 | NPT Female 2 | A | B (Ø) |
|---|---|---|---|---|
| 95W0404316 | 1/4"NPT | 1/4"NPT | 34 | 20 |
| 95W0606316 | 3/8"NPT | 3/8"NPT | 36 | 23 |
| 95W0808316 | 1/2"NPT | 1/2"NPT | 44 | 31 |
| 95W1212316 | 3/4"NPT | 3/4"NPT | 46 | 36 |
| 95W1616316 | 1"NPT | 1"NPT | 54 | 48 |
| 95W2020316 | 1 1/4"NPT | 1 1/4"NPT | 54 | 55 |
| 95W2424316 | 1 1/2"NPT | 1 1/2"NPT | 57 | 60 |
| 95W3232316 | 2"NPT | 2"NPT | 72 | 80 |
Article number structure
95W | 04 | 04 | 316 | 6KSeries | NPT female thread code 1 | NPT female thread code 2 | Material | Pressure class
Product specifications
| End 1 — NPT Female | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT female sides: Tapered pipe threads to ASME B1.20.1. Weld collar configuration with identical connection size on both ends.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
