PRODUCT GROUP95456K
NPT Female × NPT Female, Elbow 45°
ASME B1.20.1
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

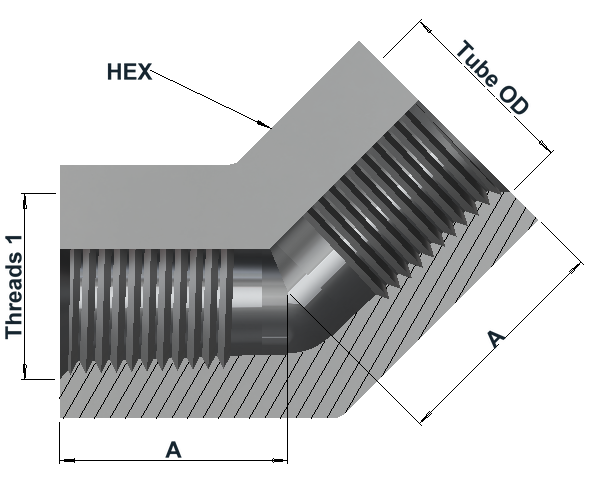

Dimensions & variants
Dimensions in mm
| Item number | NPT Female 1 | NPT Female 2 | A | Hex |
|---|---|---|---|---|
| 95450404316 | 1/4"NPT | 1/4"NPT | 36 | 20 |
| 95450606316 | 3/8"NPT | 3/8"NPT | 42 | 23 |
| 95450808316 | 1/2"NPT | 1/2"NPT | 42 | 28 |
| 95451212316 | 3/4"NPT | 3/4"NPT | 55 | 34 |
| 95451616316 | 1"NPT | 1"NPT | 56 | 44 |
| 95452020316 | 1 1/4"NPT | 1 1/4"NPT | 62 | 52 |
| 95452424316 | 1 1/2"NPT | 1 1/2"NPT | 67 | 62 |
Article number structure
9545 | 04 | 04 | 316 | 6KSeries | NPT female thread code 1 | NPT female thread code 2 | Material | Pressure class
Product specifications
| End 1 — NPT Female | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT female sides: Tapered pipe threads to ASME B1.20.1. 45° elbow configuration with identical connection size on both ends.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
