PRODUCT GROUP95006K
NPT Female × NPT Female
ASME B1.20.1
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

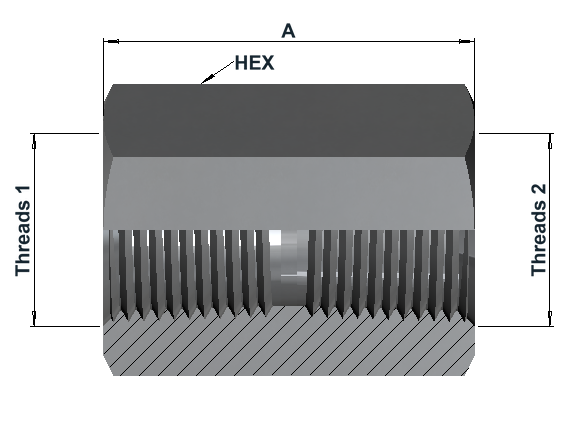

Dimensions & variants
Dimensions in mm
| Item number | NPT Female 1 | NPT Female 2 | A | Hex | Weight (kg) |
|---|---|---|---|---|---|
| 95000202316 | 1/8"NPT | 1/8"NPT | 28 | 14 | 0.022 |
| 95000204316 | 1/8"NPT | 1/4"NPT | 32 | 19 | 0.056 |
| 95000404316 | 1/4"NPT | 1/4"NPT | 34 | 19 | 0.052 |
| 95000406316 | 1/4"NPT | 3/8"NPT | 36 | 22 | 0.076 |
| 95000408316 | 1/4"NPT | 1/2"NPT | 42 | 30 | 0.185 |
| 95000606316 | 3/8"NPT | 3/8"NPT | 36 | 22 | 0.065 |
| 95000608316 | 3/8"NPT | 1/2"NPT | 42 | 30 | 0.177 |
| 95000808316 | 3/8"NPT | 1/2"NPT | 44 | 30 | 0.169 |
| 95000812316 | 1/2"NPT | 3/4"NPT | 48 | 36 | 0.279 |
| 95000816316 | 1/2"NPT | 1"NPT | 53 | 46 | 0.545 |
| 95001212316 | 3/4"NPT | 3/4"NPT | 46 | 36 | 0.233 |
| 95001216316 | 3/4"NPT | 1"NPT | 54 | 46 | 0.520 |
| 95001616316 | 1"NPT | 1"NPT | 54 | 46 | 0.456 |
| 95001620316 | 1"NPT | 1 1/4"NPT | 57 | 55 | |
| 95001624316 | 1"NPT | 1 1/2"NPT | 60 | 60 | 0.901 |
| 95002020316 | 1 1/4"NPT | 1 1/4"NPT | 54 | 55 | 0.586 |
| 95002024316 | 1 1/4"NPT | 1 1/2"NPT | 60 | 60 | |
| 95002424316 | 1 1/2"NPT | 1 1/2"NPT | 57 | 60 | |
| 95002432316 | 1 1/2"NPT | 2"NPT | 68 | 75 | |
| 95003232316 | 2"NPT | 2"NPT | 72 | 75 |
Article number structure
9500 | 04 | 06 | 316 | 6KSeries | NPT female thread code 1 | NPT female thread code 2 | Material | Pressure class
Product specifications
| End 1 — NPT Female | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT female sides: Tapered pipe threads to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
