PRODUCT GROUP950015K
NPT Female × NPT Female
ASME B1.20.1
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

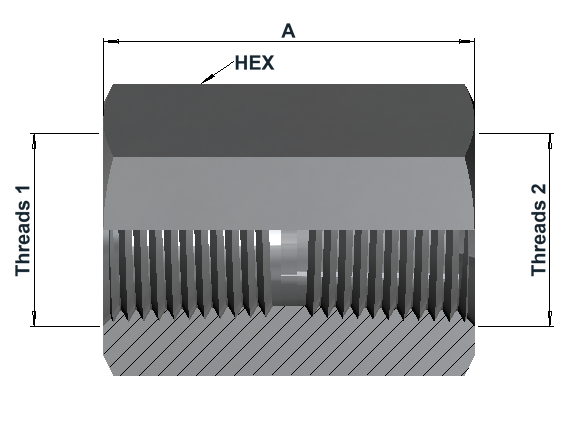

Dimensions & variants
Dimensions in mm
| Item number | NPT Female 1 | NPT Female 2 | A | Hex | Weight (kg) |
|---|---|---|---|---|---|
| 9500040431615K | 1/4"NPT | 1/4"NPT | 34 | 24 | 0.103 |
| 9500040631615K | 1/4"NPT | 3/8"NPT | 36 | 27 | 0.136 |
| 9500040831615K | 1/4"NPT | 1/2"NPT | 42 | 36 | |
| 9500060631615K | 3/8"NPT | 3/8"NPT | 36 | 27 | 0.125 |
| 9500060831615K | 3/8"NPT | 1/2"NPT | 42 | 36 | 0.292 |
| 9500080831615K | 1/2"NPT | 1/2"NPT | 44 | 36 | 0.286 |
| 9500081231615K | 1/2"NPT | 3/4"NPT | 48 | 50 | 0.667 |
| 9500081631615K | 1/2"NPT | 1"NPT | 53 | 55 | |
| 9500121231615K | 3/4"NPT | 3/4"NPT | 46 | 50 | 0.612 |
| 9500121631615K | 3/4"NPT | 1"NPT | 54 | 55 | |
| 9500161631615K | 1"NPT | 1"NPT | 54 | 55 |
Article number structure
9500 | 08 | 12 | 316 | 15KSeries | NPT female thread code 1 | NPT female thread code 2 | Material | Pressure class
Product specifications
| End 1 — NPT Female | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT female side 1: Tapered pipe thread to ASME B1.20.1.
NPT female side 2: Tapered pipe thread to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
