PRODUCT GROUP950010K
NPT Female × NPT Female
ASME B1.20.1
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

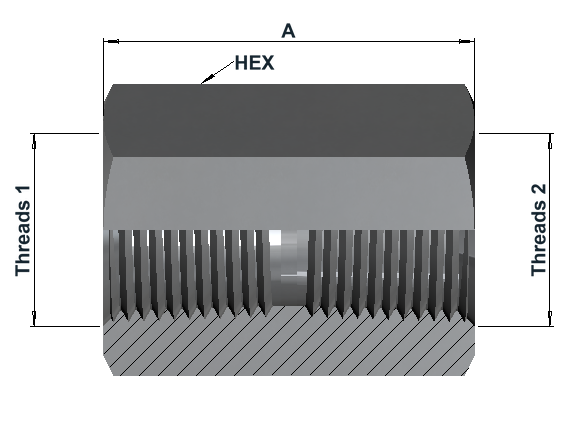

Dimensions & variants
Dimensions in mm
| Item number | NPT Female 1 | NPT Female 2 | A | Hex | Weight (kg) |
|---|---|---|---|---|---|
| 9500040431610K | 1/4"NPT | 1/4"NPT | 34 | 22 | 0.082 |
| 9500040631610K | 1/4"NPT | 3/8"NPT | 36 | 24 | 0.099 |
| 9500040831610K | 1/4"NPT | 1/2"NPT | 42 | 32 | 0.224 |
| 9500060631610K | 3/8"NPT | 3/8"NPT | 36 | 24 | 0.088 |
| 9500060831610K | 3/8"NPT | 1/2"NPT | 42 | 32 | 0.212 |
| 9500080831610K | 1/2"NPT | 1/2"NPT | 44 | 32 | 0.207 |
| 9500081231610K | 1/2"NPT | 3/4"NPT | 48 | 41 | 0.404 |
| 9500081631610K | 1/2"NPT | 1"NPT | 53 | 50 | 0.689 |
| 9500121231610K | 3/4"NPT | 3/4"NPT | 46 | 41 | 0.356 |
| 9500121631610K | 3/4"NPT | 1"NPT | 54 | 50 | 0.660 |
| 9500161631610K | 1"NPT | 1"NPT | 54 | 50 | 0.600 |
Article number structure
9500 | 08 | 12 | 316 | 10KSeries | NPT female thread code 1 | NPT female thread code 2 | Material | Pressure class
Product specifications
| End 1 — NPT Female | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT female side 1: Tapered pipe thread to ASME B1.20.1.
NPT female side 2: Tapered pipe thread to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
