NPT Female, Cross

ASME B1.20.1

Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

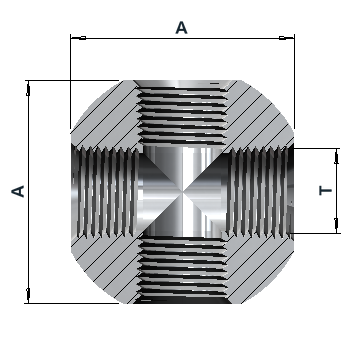

9540 10K NPT Female, Cross dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	NPT Female	A	Weight (kg)
9540161631610K	1"NPT	74	1.300

Article number structure

9540 | 16 | 16 | 316 | 10K

Series | NPT female thread code 1 | NPT female thread code 2 | Material | Pressure class

Download Datasheet

Product specifications

Ends 1–4 — NPT Female	Configuration	General product information
Type NPT Female Sealing Tapered pipe thread Thread standard ASME B1.20.1	Type Cross Connections Four threaded ports Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 10,000 PSI / 689 bar / 68.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

NPT female ends: Tapered pipe threads to ASME B1.20.1. Cross configuration with identical connection size on all four ports.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-9540-10K · HTML DRAFT 01
Layout example based on the group 9540 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
