PRODUCT GROUP99506K
NPT Female Cap
ASME B1.20.1
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*
Dimensions & variants

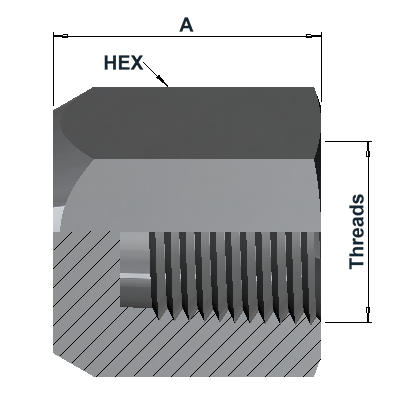

Dimensions in mm
| Item number | NPT Female | A | Hex |
|---|---|---|---|
| 99500404316 | 1/4"NPT | 24 | 19 |
| 99500606316 | 3/8"NPT | 26 | 22 |
| 99500808316 | 1/2"NPT | 32 | 30 |
| 99501212316 | 3/4"NPT | 34 | 36 |
| 99501616316 | 1"NPT | 38 | 46 |
| 99502020316 | 1 1/4"NPT | 40 | 55 |
| 99502424316 | 1 1/2"NPT | 42 | 60 |
Article number structure
9950 | 12 | 12 | 316Series | NPT thread code | NPT thread code | Material
Product specifications
| Connection — NPT Female | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
NPT female side: Tapered pipe thread to ASME B1.20.1. Cap configuration for closing a mating NPT male connection.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
