Metric 24° Male × BSPP Male
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*
Dimensions & variants

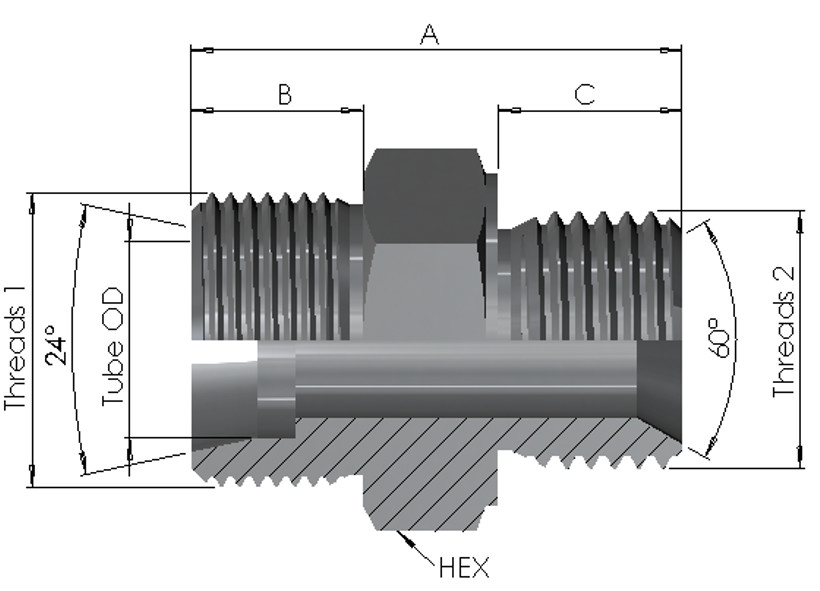

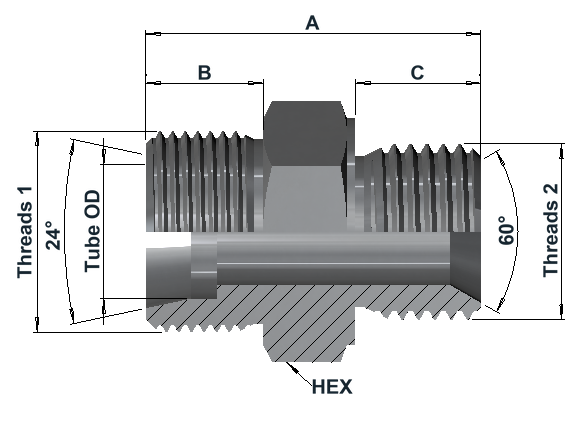

Dimensions in mm
| Item number | Tube Metric 1 | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex |
|---|---|---|---|---|---|---|---|
| SM550014S0431615K | 14mm | M22 X 1.5 | G 1/4" | 36 | 14 | 11 | 24 |
| SM550014S0831615K | 14mm | M22 X 1.5 | G 1/2" | 40 | 14 | 15 | 27 |
| SM550016S0431615K | 16mm | M24 X 1.5 | G 1/4" | 36 | 14 | 11 | 27 |
| SM550016S0631615K | 16mm | M24 X 1.5 | G 3/8" | 37.5 | 14 | 12.5 | 27 |
| SM550016S0831615K | 16mm | M24 X 1.5 | G 1/2" | 40 | 14 | 15 | 27 |
| SM550016S1231615K | 16mm | M24 X 1.5 | G 3/4" | 42 | 14 | 17 | 27 |
| SM550016S1631615K | 16mm | M24 X 1.5 | G1" | 46 | 14 | 19 | 36 |
| SM550025S0831615K | 25mm | M36 X 2.0 | G 1/2" | 50 | 22 | 15 | 41 |
| SM550025S1231615K | 25mm | M36 X 2.0 | G 3/4" | 52 | 22 | 17 | 41 |
| SM550025S1631615K | 25mm | M36 X 2.0 | G 1" | 54 | 22 | 19 | 41 |
Article number structure
SM5500 | 14S | 04 | 316 | 15KSeries | Metric tube size + series | BSPP size code | Material | Pressure class
Product specifications
| End 1 — Metric 24° Male | End 2 — BSPP Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
Metric 24° male end: 24° cone end to ISO 8434-1 with ISO metric thread to ISO 724, tolerance class 6g to ISO 965-1.
BSPP Male end: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
Working pressure basis
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
