Medium Pressure Male Fixed × NPT Male

ASME B1.20.1

Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

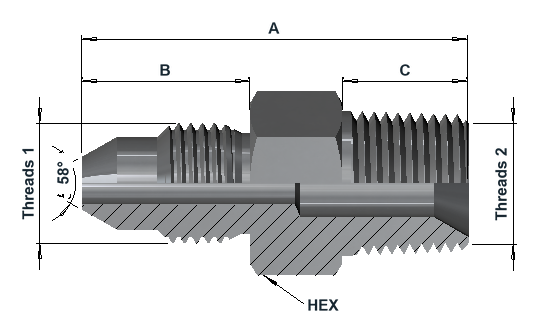

MMF9300 15K Medium Pressure Male Fixed × NPT Male dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	MP Size	MP Thread	NPT Thread	A	B	C	Hex
MMF93000404316	1/4" (04)	7/16"-20UN	1/4"NPT	41.5	18	14	17
MMF93000406316	1/4" (04)	7/16"-20UN	3/8"NPT	44	18	15	19
MMF93000408316	1/4" (04)	7/16"-20UN	1/2"NPT	49	18	19	22
MMF93000604316	3/8" (06)	9/16"-18UN	1/4"NPT	44	20	14	17
MMF93000606316	3/8" (06)	9/16"-18UN	3/8"NPT	46	20	15	19
MMF93000608316	3/8" (06)	9/16"-18UN	1/2"NPT	51	20	19	22
MMF93000904316	9/16" (09)	13/16"-16UN	1/4"NPT	50	25	14	22
MMF93000906316	9/16" (09)	13/16"-16UN	3/8"NPT	51	25	15	22
MMF93000908316	9/16" (09)	13/16"-16UN	1/2"NPT	55	25	19	22
MMF93000912316	9/16" (09)	13/16"-16UN	3/4"NPT	56	25	20	27
MMF93000916316	9/16" (09)	13/16"-16UN	1"NPT	61	25	24	36
MMF93001208316	3/4" (12)	3/4"-14NPSM	1/2"NPT	61	30	19	27
MMF93001212316	3/4" (12)	3/4"-14NPSM	3/4"NPT	62	30	20	27
MMF93001216316	3/4" (12)	3/4"-14NPSM	1"NPT	67	30	24	36
MMF93001608316	1" (16)	1 3/8"-12UN	1/2"NPT	73	43	19	36
MMF93001612316	1" (16)	1 3/8"-12UN	3/4"NPT	74	43	20	36
MMF93001616316	1" (16)	1 3/8"-12UN	1"NPT	78	43	24	36

Article number structure

MMF9300 | 09 | 16 | 316

Series | MP size code | NPT size code | Material

Download Datasheet

Product specifications

End 1 — Medium Pressure Male Fixed	End 2 — NPT Male	General product information
Type Medium Pressure Male Fixed Sealing 58° male cone / 60° female cone seat Connection geometry Medium Pressure cone-and-thread MP size and thread See dimensions	Type NPT Male Sealing Tapered pipe thread Thread standard ASME B1.20.1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 15,000 PSI / 1,034 bar / 103.4 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

Medium Pressure side: 58° male cone geometry, mating against a 60° female cone seat. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.

NPT side: Tapered pipe thread to ASME B1.20.1.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-MMF9300-15K · HTML DRAFT 01
Layout example based on the group MMF9300 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
