Medium Pressure Male Fixed × JIC 37° Male
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

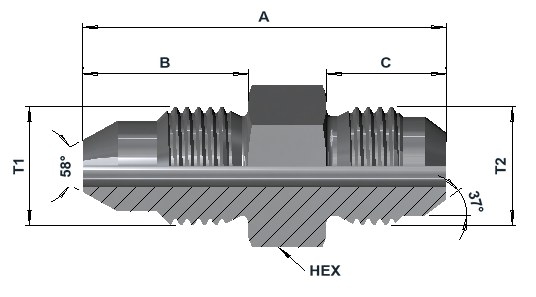

Dimensions & variants
Dimensions in mm
| Item number | MP Size | MP Thread | JIC 37° Thread | Dash | A | B | C | Hex |
|---|---|---|---|---|---|---|---|---|
| MMF83000407316 | 1/4" (04) | 7/16"-20UN | 7/16"-20UN | -04 | 42 | 18 | 14.5 | 14 |
| MMF83000409316 | 1/4" (04) | 7/16"-20UN | 9/16"-18UN | -06 | 42 | 18 | 14.5 | 17 |
| MMF83000607316 | 3/8" (06) | 9/16"-18UN | 7/16"-20UN | -04 | 44 | 20 | 14.5 | 17 |
| MMF83000609316 | 3/8" (06) | 9/16"-18UN | 9/16"-18UN | -06 | 44 | 20 | 14.5 | 17 |
| MMF83000612316 | 3/8" (06) | 9/16"-18UN | 3/4"-16UN | -08 | 46 | 20 | 16.5 | 22 |
| MMF83000907316 | 9/16" (09) | 13/16"-16UN | 7/16"-20UN | -04 | 50 | 25 | 14.5 | 22 |
| MMF83000909316 | 9/16" (09) | 13/16"-16UN | 9/16"-18UN | -06 | 50 | 25 | 14.5 | 22 |
| MMF83000912316 | 9/16" (09) | 13/16"-16UN | 3/4"-16UN | -08 | 52 | 25 | 16.5 | 22 |
| MMF83000917316 | 9/16" (09) | 13/16"-16UN | 1 1/16"-12UN | -12 | 58 | 25 | 22 | 30 |
| MMF83001217316 | 3/4" (12) | 3/4"-14NPSM | 1 1/16"-12UN | -12 | 63 | 30 | 22 | 30 |
| MMF83001221316 | 3/4" (12) | 3/4"-14NPSM | 1 5/16"-12UN | -16 | 64 | 30 | 23 | 36 |
| MMF83001617316 | 1" (16) | 1 3/8"-12UN | 1 1/16"-12UN | -12 | 77 | 43 | 23 | 36 |
| MMF83001621316 | 1" (16) | 1 3/8"-12UN | 1 5/16"-12UN | -16 | 77 | 43 | 23 | 36 |
Article number structure
MMF8300 | 09 | 17 | 316Series | MP size code | JIC size code | Material
Product specifications
| End 1 — Medium Pressure Male Fixed | End 2 — JIC 37° Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
Medium Pressure side: 58° male cone geometry, mating against a 60° female cone seat. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
JIC side: 37° male flare connection to ISO 8434-2 with UN/UNF thread to ASME B1.1. JIC dash size is shown in the table.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
