Medium Pressure Male Fixed × BSP Male
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

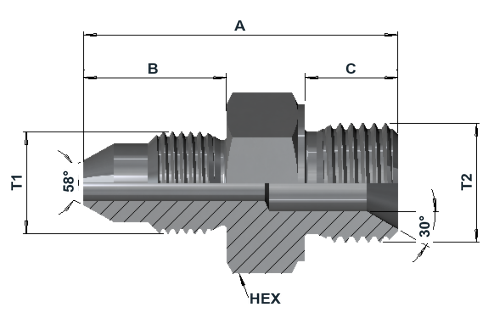

Dimensions & variants
Dimensions in mm
| Item number | MP Size | MP Thread | BSPP Thread | A | B | C | Hex |
|---|---|---|---|---|---|---|---|
| MMF55000404316 | 1/4" (04) | 7/16"-20UN | G 1/4" | 40 | 18 | 11 | 19 |
| MMF55000406316 | 1/4" (04) | 7/16"-20UN | G 3/8" | 42 | 18 | 12.5 | 22 |
| MMF55000408316 | 1/4" (04) | 7/16"-20UN | G 1/2" | 45 | 18 | 15 | 27 |
| MMF55000604316 | 3/8" (06) | 9/16"-18UN | G 1/4" | 42 | 20 | 11 | 19 |
| MMF55000606316 | 3/8" (06) | 9/16"-18UN | G 3/8" | 44 | 20 | 12.5 | 22 |
| MMF55000608316 | 3/8" (06) | 9/16"-18UN | G 1/2" | 47 | 20 | 15 | 27 |
| MMF55000904316 | 9/16" (09) | 13/16"-16UN | G 1/4" | 47 | 25 | 11 | 22 |
| MMF55000906316 | 9/16" (09) | 13/16"-16UN | G 3/8" | 49 | 25 | 12.5 | 22 |
| MMF55000908316 | 9/16" (09) | 13/16"-16UN | G 1/2" | 52 | 25 | 15 | 27 |
| MMF55000912316 | 9/16" (09) | 13/16"-16UN | G 3/4" | 54 | 25 | 17 | 32 |
| MMF55000916316 | 9/16" (09) | 13/16"-16UN | G 1" | 59 | 25 | 19 | 41 |
| MMF55001208316 | 3/4" (12) | 3/4"-14NPSM | G 1/2" | 57 | 30 | 15 | 27 |
| MMF55001212316 | 3/4" (12) | 3/4"-14NPSM | G 3/4" | 60 | 30 | 17 | 32 |
| MMF55001216316 | 3/4" (12) | 3/4"-14NPSM | G 1" | 64 | 30 | 19 | 41 |
| MMF55001608316 | 1" (16) | 1 3/8"-12UN | G 1/2" | 72 | 43 | 15 | 36 |
| MMF55001612316 | 1" (16) | 1 3/8"-12UN | G 3/4" | 74 | 43 | 17 | 36 |
| MMF55001616316 | 1" (16) | 1 3/8"-12UN | G 1" | 76 | 43 | 19 | 41 |
Article number structure
MMF5500 | 09 | 16 | 316Series | MP size code | BSP size code | Material
Product specifications
| End 1 — Medium Pressure Male Fixed | End 2 — BSPP Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
Medium Pressure side: 58° male cone geometry, mating against a 60° female cone seat. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
BSPP side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
