PRODUCT GROUPMMS20K
Medium Pressure Male Swivel Plug
Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*
Dimensions & variants

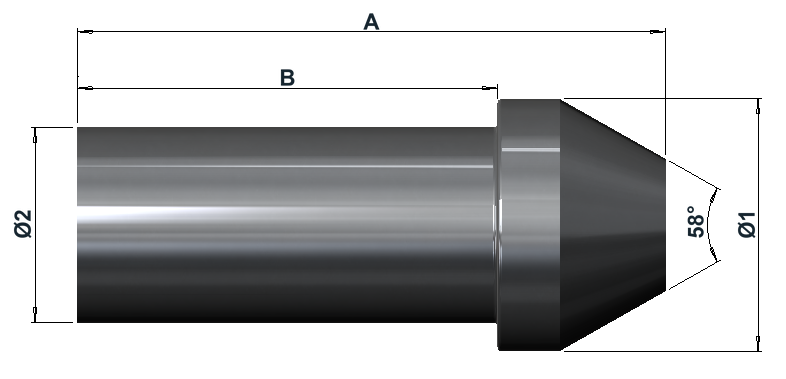

Dimensions in mm
| Item number | MP Size | A | B | Ø1 | Ø2 |
|---|---|---|---|---|---|
| MMS04316 | 1/4" (04) | 23 | 15 | 9 | 6.3 |
| MMS06316 | 3/8" (06) | 28 | 20 | 12 | 9.3 |
| MMS09316 | 9/16" (09) | 35 | 24 | 18 | 14 |
| MMS12316 | 3/4" (12) | 41 | 27 | 23 | 18.9 |
| MMS16316 | 1" (16) | 54 | 37 | 31 | 25.7 |
| MMS24316 | 1 1/2" (24) | 75 | 53 | 44 | 38.1 |
Article number structure
MMS | 04 | 316Series | MP size code | Material
Product specifications
| Connection — Medium Pressure Male Swivel | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
58° male cone geometry, mating against a 60° female cone seat.
To be used with Medium Pressure Gland (MPG).
Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
