PRODUCT GROUPMMF20K
Medium Pressure Male Fixed Plug
Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*

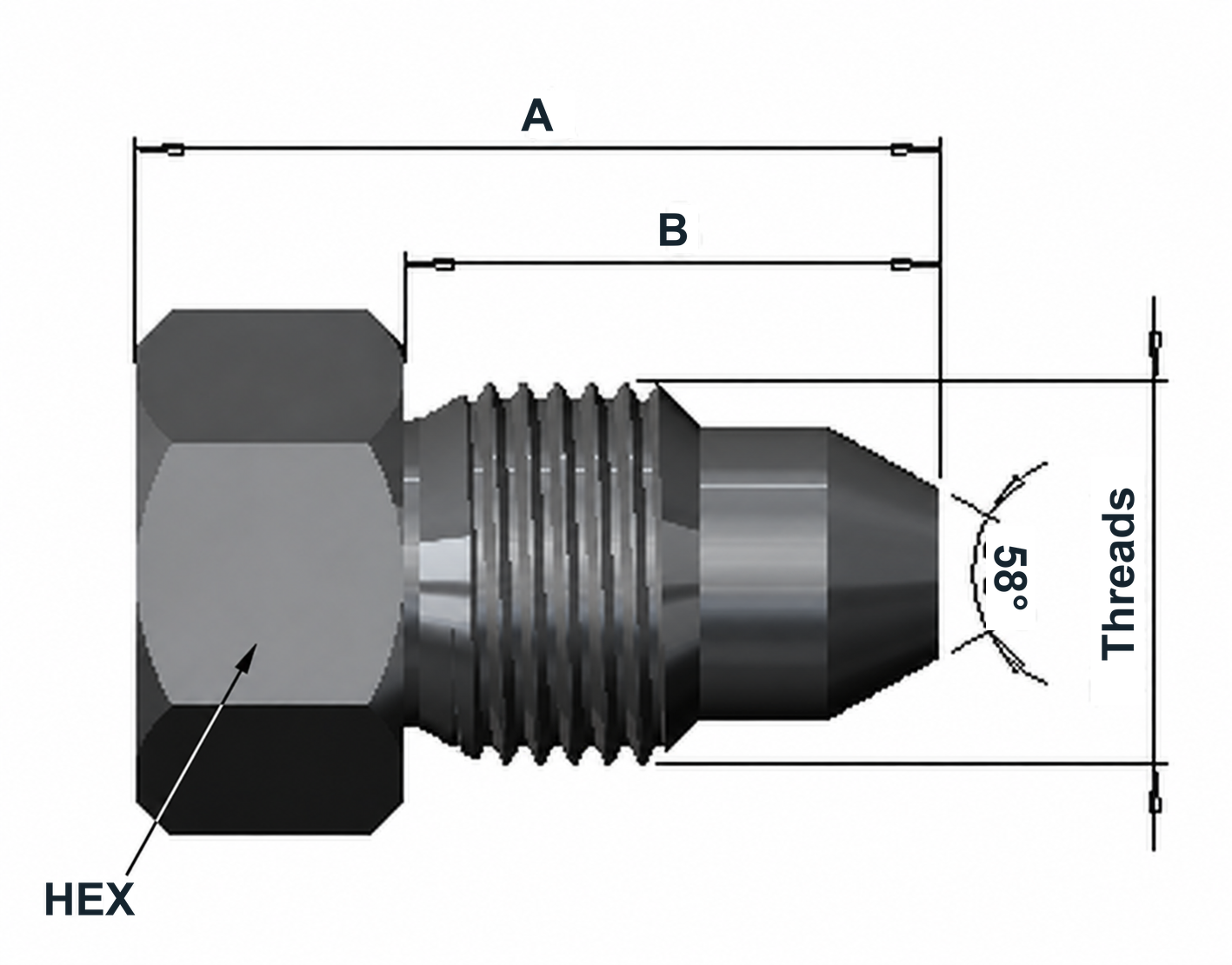

Dimensions & variants
Dimensions in mm
| Item number | MP Size | Thread | A | B | Hex |
|---|---|---|---|---|---|
| MMF04316 | 1/4" (04) | 7/16"-20UN | 28 | 18 | 14 |
| MMF06316 | 3/8" (06) | 9/16"-18UN | 30 | 20 | 17 |
| MMF09316 | 9/16" (09) | 13/16"-16UN | 35 | 25 | 22 |
| MMF12316 | 3/4" (12) | 3/4"-14NPSM | 41 | 30 | 27 |
| MMF16316 | 1" (16) | 1 3/8"-12UN | 56 | 43 | 36 |
| MMF24316 | 1 1/2" (24) | 1 7/8"-12UN | 68 | 55 | 50 |
Article number structure
MMF | 04 | 316Series | MP size code | Material
Product specifications
| Connection — Medium Pressure Male Fixed | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
58° male cone geometry, mating against a 60° female cone seat. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
Thread type and size vary by MP size and are specified individually in the table.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
