PRODUCT GROUPMMF-MF20K
Medium Pressure Male Fixed / Female
Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*

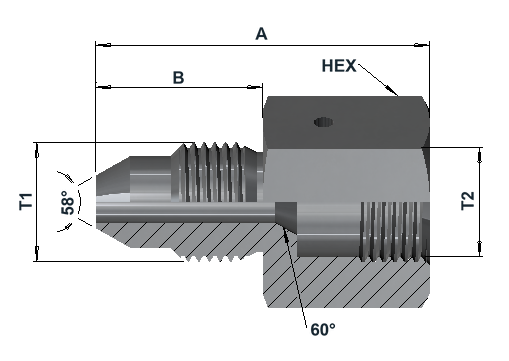

Dimensions & variants
Dimensions in mm
| Item number | MP Size 1 | MP Thread 1 | MP Size 2 | MP Thread 2 | A | B | Hex |
|---|---|---|---|---|---|---|---|
| MMF04MF04316 | 1/4" (04) | 7/16"-20UN | 1/4" (04) | 7/16"-20UN | 35 | 18 | 19 |
| MMF04MF06316 | 1/4" (04) | 7/16"-20UN | 3/8" (06) | 9/16"-18UN | 40 | 18 | 22 |
| MMF04MF09316 | 1/4" (04) | 7/16"-20UN | 9/16" (09) | 13/16"-16UN | 50 | 18 | 27 |
| MMF06MF04316 | 3/8" (06) | 9/16"-18UN | 1/4" (04) | 7/16"-20UN | 36 | 20 | 19 |
| MMF06MF06316 | 3/8" (06) | 9/16"-18UN | 3/8" (06) | 9/16"-18UN | 40 | 20 | 22 |
| MMF06MF09316 | 3/8" (06) | 9/16"-18UN | 9/16" (09) | 13/16"-16UN | 50 | 20 | 27 |
| MMF09MF04316 | 9/16" (09) | 13/16"-16UN | 1/4" (04) | 7/16"-20UN | 40 | 25 | 22 |
| MMF09MF06316 | 9/16" (09) | 13/16"-16UN | 3/8" (06) | 9/16"-18UN | 45 | 25 | 22 |
| MMF09MF09316 | 9/16" (09) | 13/16"-16UN | 9/16" (09) | 13/16"-16UN | 50 | 25 | 27 |
| MMF09MF12316 | 9/16" (09) | 13/16"-16UN | 3/4" (12) | 3/4"-14NPSM | 60 | 25 | 36 |
| MMF09MF16316 | 9/16" (09) | 13/16"-16UN | 1" (16) | 1 3/8"-12UN | 72 | 25 | 46 |
| MMF12MF09316 | 3/4" (12) | 3/4"-14NPSM | 9/16" (09) | 13/16"-16UN | 53 | 30 | 27 |
| MMF12MF12316 | 3/4" (12) | 3/4"-14NPSM | 3/4" (12) | 3/4"-14NPSM | 65 | 30 | 36 |
| MMF12MF16316 | 3/4" (12) | 3/4"-14NPSM | 1" (16) | 1 3/8"-12UN | 77 | 30 | 46 |
| MMF16MF09316 | 1" (16) | 1 3/8"-12UN | 9/16" (09) | 13/16"-16UN | 61 | 43 | 36 |
| MMF16MF12316 | 1" (16) | 1 3/8"-12UN | 3/4" (12) | 3/4"-14NPSM | 74 | 43 | 36 |
| MMF16MF16316 | 1" (16) | 1 3/8"-12UN | 1" (16) | 1 3/8"-12UN | 90 | 43 | 46 |
Article number structure
MMF09 | MF12 | 316Male end + size | Female end + size | Material
Product specifications
| End 1 — Medium Pressure Male Fixed | End 2 — Medium Pressure Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
Male side: 58° male cone geometry, intended to mate with a 60° female cone seat. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
Female side: 60° female cone seat, intended to mate with a 58° male cone.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
