Medium Pressure Gland Anti-Vibration

Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*

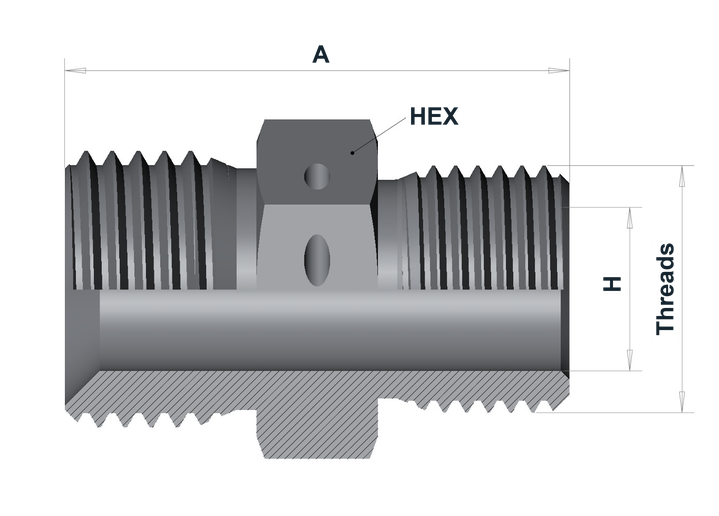

Dimensions & variants

Dimensions in mm

Item number	MP Size	Thread	A	H	Hex
MP04GAV316	1/4" (04)	7/16"-20UN	30	6.5	14
MP06GAV316	3/8" (06)	9/16"-18UN	38	9.6	17
MP09GAV316	9/16" (09)	13/16"-16UN	42	14.4	24
MP12GAV316	3/4" (12)	3/4"-14NPSM	48	19.2	27
MP16GAV316	1" (16)	1 3/8"-12UN	75	26	36
MP24GAV316	1 1/2" (24)	1 7/8"-12UN	90	38.2	50

Article number structure

MP | 04 | GAV | 316

Series | MP size code | Anti-vibration gland | Material

Download Datasheet

Product specifications

Component — Anti-vibration gland	Assembly	General product information
Type Medium Pressure anti-vibration gland Details Thread: see dimensions MP size See dimensions	System Medium Pressure cone-and-thread For use with MP-NAV and MP-SAV	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 20,000 PSI / 1,379 bar / 137.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

For use with MP-NAV and MP-SAV.

Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-MP-GAV-20K · HTML DRAFT 01
Layout example based on the group MP-GAV datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
