PRODUCT GROUPMF930015K
Medium Pressure Female × NPT Male
ASME B1.20.1
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

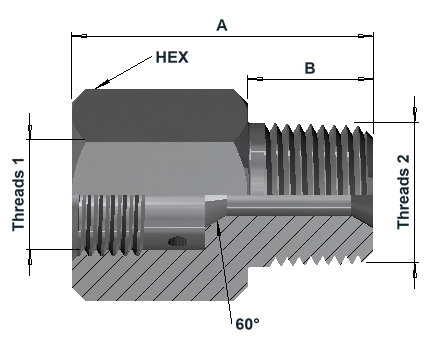

Dimensions & variants
Dimensions in mm
| Item number | MP Size | MP Thread | NPT Thread | A | B | Hex |
|---|---|---|---|---|---|---|
| MF93000404316 | 1/4" (04) | 7/16"-20UN | 1/4"NPT | 32 | 14 | 19 |
| MF93000406316 | 1/4" (04) | 7/16"-20UN | 3/8"NPT | 31 | 15 | 19 |
| MF93000408316 | 1/4" (04) | 7/16"-20UN | 1/2"NPT | 32 | 19 | 22 |
| MF93000604316 | 3/8" (06) | 9/16"-18UN | 1/4"NPT | 36 | 14 | 22 |
| MF93000606316 | 3/8" (06) | 9/16"-18UN | 3/8"NPT | 36 | 15 | 22 |
| MF93000608316 | 3/8" (06) | 9/16"-18UN | 1/2"NPT | 40 | 19 | 22 |
| MF93000904316 | 9/16" (09) | 13/16"-16UN | 1/4"NPT | 43 | 14 | 27 |
| MF93000906316 | 9/16" (09) | 13/16"-16UN | 3/8"NPT | 43 | 15 | 27 |
| MF93000908316 | 9/16" (09) | 13/16"-16UN | 1/2"NPT | 47 | 19 | 27 |
| MF93000912316 | 9/16" (09) | 13/16"-16UN | 3/4"NPT | 48 | 20 | 27 |
| MF93000916316 | 9/16" (09) | 13/16"-16UN | 1"NPT | 49 | 24 | 36 |
| MF93001208316 | 3/4" (12) | 3/4"-14NPSM | 1/2"NPT | 51 | 19 | 36 |
| MF93001212316 | 3/4" (12) | 3/4"-14NPSM | 3/4"NPT | 51 | 20 | 36 |
| MF93001216316 | 3/4" (12) | 3/4"-14NPSM | 1"NPT | 56 | 24 | 36 |
| MF93001608316 | 1" (16) | 1 3/8"-12UN | 1/2"NPT | 65 | 19 | 46 |
| MF93001612316 | 1" (16) | 1 3/8"-12UN | 3/4"NPT | 65 | 20 | 46 |
| MF93001616316 | 1" (16) | 1 3/8"-12UN | 1"NPT | 66 | 24 | 46 |
Article number structure
MF9300 | 09 | 16 | 316Series | MP size code | NPT size code | Material
Product specifications
| End 1 — Medium Pressure Female | End 2 — NPT Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
Medium Pressure side: 60° female cone seat, intended to mate with a 58° male cone. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
NPT male end to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
