Medium Pressure Female × BSPP Male
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*
Dimensions & variants

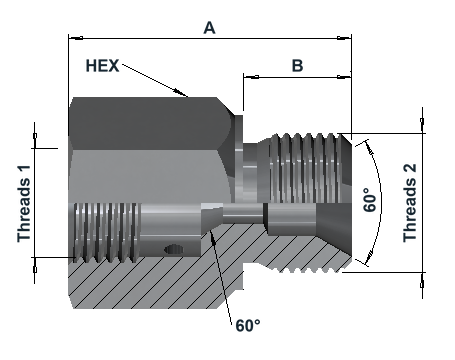

Dimensions in mm
| Item number | MP Size | MP Thread | BSPP Thread | A | B | Hex |
|---|---|---|---|---|---|---|
| MF55000404316 | 1/4" (04) | 7/16"-20UN | G 1/4" | 28 | 11 | 19 |
| MF55000406316 | 1/4" (04) | 7/16"-20UN | G 3/8" | 30 | 13 | 22 |
| MF55000408316 | 1/4" (04) | 7/16"-20UN | G 1/2" | 30 | 15 | 27 |
| MF55000604316 | 3/8" (06) | 9/16"-18UN | G 1/4" | 32 | 11 | 22 |
| MF55000606316 | 3/8" (06) | 9/16"-18UN | G 3/8" | 34 | 13 | 22 |
| MF55000608316 | 3/8" (06) | 9/16"-18UN | G 1/2" | 34 | 15 | 27 |
| MF55000904316 | 9/16" (09) | 13/16"-16UN | G 1/4" | 40 | 11 | 27 |
| MF55000906316 | 9/16" (09) | 13/16"-16UN | G 3/8" | 40 | 13 | 27 |
| MF55000908316 | 9/16" (09) | 13/16"-16UN | G 1/2" | 38 | 15 | 32 |
| MF55000912316 | 9/16" (09) | 13/16"-16UN | G 3/4" | 41 | 17 | 36 |
| MF55000916316 | 9/16" (09) | 13/16"-16UN | G 1" | 44 | 19 | 46 |
| MF55001208316 | 3/4" (12) | 3/4"-14NPSM | G 1/2" | 48 | 15 | 36 |
| MF55001212316 | 3/4" (12) | 3/4"-14NPSM | G 3/4" | 50 | 17 | 36 |
| MF55001216316 | 3/4" (12) | 3/4"-14NPSM | G 1" | 52.5 | 19 | 41 |
| MF55001608316 | 1" (16) | 1 3/8"-12UN | G 1/2" | 64 | 15 | 46 |
| MF55001612316 | 1" (16) | 1 3/8"-12UN | G 3/4" | 62 | 17 | 46 |
| MF55001616316 | 1" (16) | 1 3/8"-12UN | G 1" | 60 | 19 | 46 |
Article number structure
MF5500 | 09 | 12 | 316Series | MP size code | BSP size code | Material
Product specifications
| End 1 — Medium Pressure Female | End 2 — BSPP Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
Medium Pressure side: 60° female cone seat, intended to mate with a 58° male cone. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
BSPP side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
