PRODUCT GROUPMF630015K
Medium Pressure Female × BSPP Female Fixed
ISO 1179-2
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

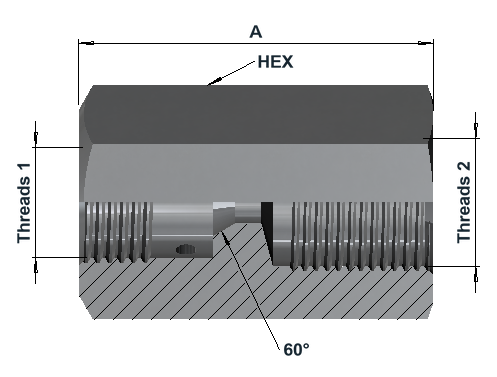

Dimensions & variants
Dimensions in mm
| Item number | MP Size | MP Thread | BSPP Thread | A | Hex |
|---|---|---|---|---|---|
| MF63000404316 | 1/4" (04) | 7/16"-20UN | G 1/4" | 37 | 22 |
| MF63000406316 | 1/4" (04) | 7/16"-20UN | G 3/8" | 38 | 24 |
| MF63000408316 | 1/4" (04) | 7/16"-20UN | G 1/2" | 42 | 32 |
| MF63000604316 | 3/8" (06) | 9/16"-18UN | G 1/4" | 40 | 22 |
| MF63000606316 | 3/8" (06) | 9/16"-18UN | G 3/8" | 42 | 24 |
| MF63000608316 | 3/8" (06) | 9/16"-18UN | G 1/2" | 45 | 32 |
| MF63000904316 | 9/16" (09) | 13/16"-16UN | G 1/4" | 45 | 27 |
| MF63000906316 | 9/16" (09) | 13/16"-16UN | G 3/8" | 48 | 27 |
| MF63000908316 | 9/16" (09) | 13/16"-16UN | G 1/2" | 50 | 32 |
| MF63000912316 | 9/16" (09) | 13/16"-16UN | G 3/4" | 50 | 46 |
| MF63000916316 | 9/16" (09) | 13/16"-16UN | G 1" | 53 | 50 |
| MF63001208316 | 3/4" (12) | 3/4"-14NPSM | G 1/2" | 54 | 36 |
| MF63001212316 | 3/4" (12) | 3/4"-14NPSM | G 3/4" | 50 | 46 |
| MF63001216316 | 3/4" (12) | 3/4"-14NPSM | G 1" | 52.5 | 50 |
| MF63001608316 | 1" (16) | 1 3/8"-12UN | G 1/2" | 64 | 46 |
| MF63001612316 | 1" (16) | 1 3/8"-12UN | G 3/4" | 62 | 46 |
| MF63001616316 | 1" (16) | 1 3/8"-12UN | G 1" | 60 | 50 |
Article number structure
MF6300 | 09 | 16 | 316Series | MP size code | BSP size code | Material
Product specifications
| End 1 — Medium Pressure Female | End 2 — BSPP Female Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
Medium Pressure side: 60° female cone seat, intended to mate with a 58° male cone. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
BSPP Female Fixed side: Fixed parallel G thread to ISO 1179-2 / ISO 228-1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
