PRODUCT GROUPMF-MF20K
Medium Pressure Female / Female
Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*

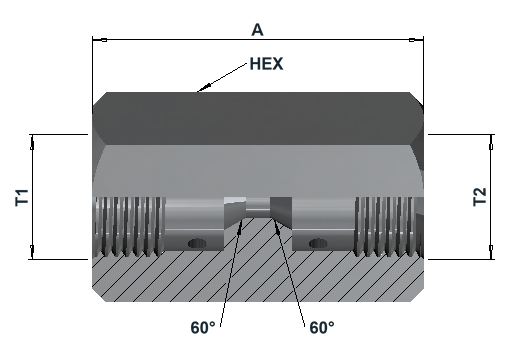

Dimensions & variants
Dimensions in mm
| Item number | MP Size 1 | MP Thread 1 | MP Size 2 | MP Thread 2 | A | Hex |
|---|---|---|---|---|---|---|
| MF04MF04316 | 1/4" (04) | 7/16"-20UN | 1/4" (04) | 7/16"-20UN | 35 | 19 |
| MF04MF06316 | 1/4" (04) | 7/16"-20UN | 3/8" (06) | 9/16"-18UN | 40 | 22 |
| MF04MF09316 | 1/4" (04) | 7/16"-20UN | 9/16" (09) | 13/16"-16UN | 45 | 27 |
| MF06MF06316 | 3/8" (06) | 9/16"-18UN | 3/8" (06) | 9/16"-18UN | 40 | 22 |
| MF06MF09316 | 3/8" (06) | 9/16"-18UN | 9/16" (09) | 13/16"-16UN | 48 | 27 |
| MF09MF09316 | 9/16" (09) | 13/16"-16UN | 9/16" (09) | 13/16"-16UN | 50 | 27 |
| MF09MF12316 | 9/16" (09) | 13/16"-16UN | 3/4" (12) | 3/4"-14NPSM | 58 | 36 |
| MF09MF16316 | 9/16" (09) | 13/16"-16UN | 1" (16) | 1 3/8"-12UN | 68 | 46 |
| MF12MF12316 | 3/4" (12) | 3/4"-14NPSM | 3/4" (12) | 3/4"-14NPSM | 60 | 36 |
| MF12MF16316 | 3/4" (12) | 3/4"-14NPSM | 1" (16) | 1 3/8"-12UN | 78 | 46 |
| MF16MF16316 | 1" (16) | 1 3/8"-12UN | 1" (16) | 1 3/8"-12UN | 82 | 46 |
Article number structure
MF04 | MF09 | 316Female end + size | Female end + size | Material
Product specifications
| End 1 — Medium Pressure Female | End 2 — Medium Pressure Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
60° female cone geometry on both ends, intended to mate with 58° male cone ends. Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
