PRODUCT GROUPMF-9020K
Medium Pressure Female, Elbow 90°
Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*

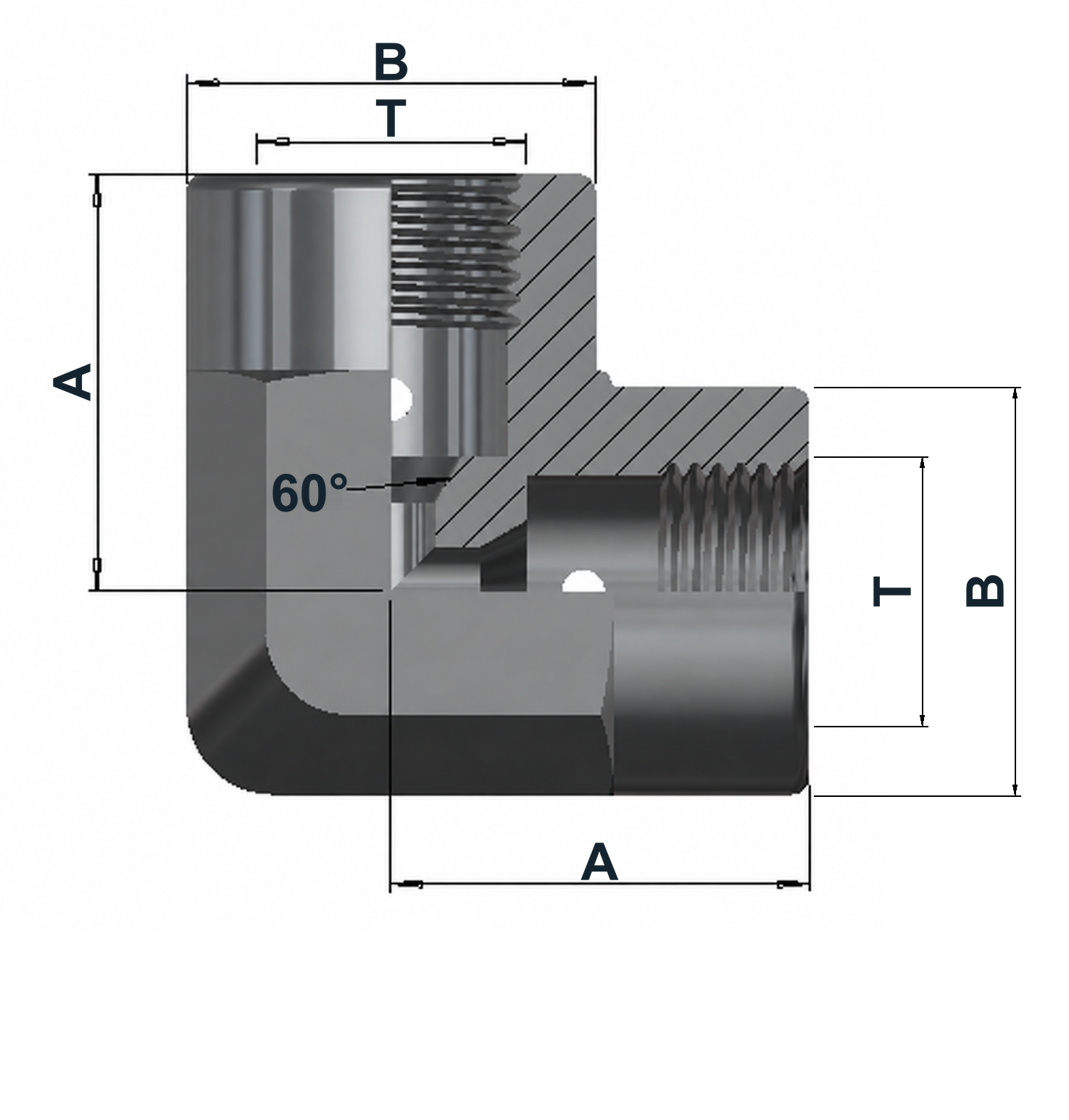

Dimensions & variants
Dimensions in mm
| Item number | MP Size | MP Thread | A | B |
|---|---|---|---|---|
| MF0490316 | 1/4" (04) | 7/16"-20UN | 29 | 20 |
| MF0690316 | 3/8" (06) | 9/16"-18UN | 36 | 23 |
| MF0990316 | 9/16" (09) | 13/16"-16UN | 45 | 28 |
| MF1290316 | 3/4" (12) | 3/4"-14NPSM | 57 | 36 |
| MF1690316 | 1" (16) | 1 3/8"-12UN | 77.5 | 52 |
Article number structure
MF04 | 90 | 316Female end + size | 90° elbow | Material
Product specifications
| Ends 1–2 — Medium Pressure Female | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
60° female cone geometry on both ports, intended to mate with 58° male cone ends.
Dimensionally compatible with the established 20,000 psi Medium Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
